IKO LRT253025
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TR304425

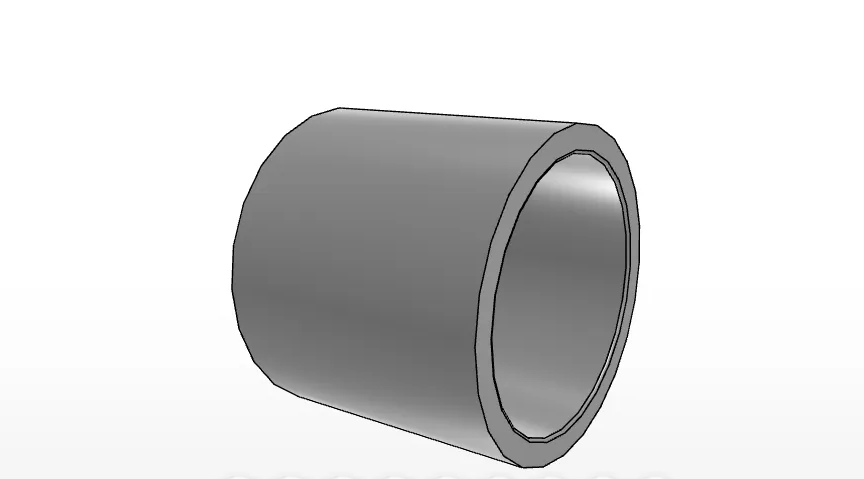

IKO LRT253025 Inner Ring in the Inner Rings Series
The LRT253025 is an IKO inner ring in the Inner Rings product series. It is listed as a metric, general-usage inner ring designed to assemble with TR304425. The category path is Brand > IKO > Inner Rings.
What bearing type and brand identify this part?
This part is an IKO Inner Ring with order number LRT253025. Its stated product series is Inner Rings, and its bearing type is also listed as Inner Rings.
LRT253025 Dimensions and Supplied Specifications
The supplied product data lists the inner ring with a shaft diameter and inside diameter of 25 mm, an outer diameter of 30 mm, and a width of 26 mm. Additional values include rs min. 0.30 mm, da min 27.0 mm, da max 29.0 mm, and mass 42.0 g.
- Inside diameter: 25 mm
- Outer diameter: 30 mm
- Width: 26 mm
- rs min.: 0.30 mm
- da min.: 27.0 mm
- da max.: 29.0 mm
- Mass: 42.0 g
What are the stated diameter measurements?
The LRT253025 is specified with both shaft diameter and inside diameter as 25 mm. Its outer diameter is 30 mm, and the listed da range is 27.0 mm minimum to 29.0 mm maximum.
Material and Assembly Details for LRT253025
The listed bearing material for the LRT253025 is High Carbon Chrome Steel; the detailed title also describes the product as high carbon steel. The product data identifies the inner ring as a metric component to assemble with TR304425.
Which bearing is identified for assembly with this inner ring?
The supplied data states that the LRT253025 is to assemble with TR304425. It also lists the assembled bearing reference as TR 304425.
