IKO LRT253032
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW304232

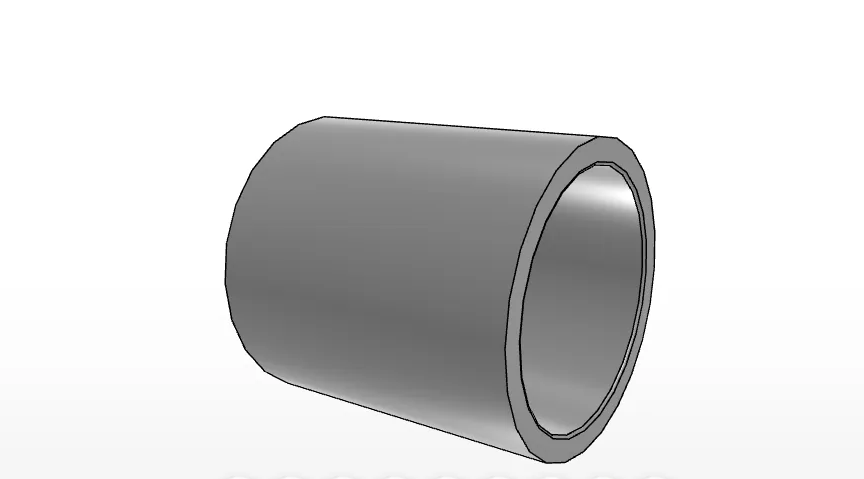

IKO LRT253032 Inner Ring for Metric Shaft Mounting
The LRT253032 is an IKO Inner Rings series product listed under Brand > IKO > Inner Rings. It has an inside diameter of 25 mm, an outer diameter of 30 mm, and a width of 32 mm.
What bearing type and model does this product represent?
This product is an inner ring identified by order number and model LRT253032. The supplied data identifies its bearing type as Inner Rings and its brand as IKO.
LRT253032 Dimensions and Assembly Information
- Shaft diameter: 25 mm
- Inside diameter: 25 mm
- Outer diameter: 30 mm
- Width: 32 mm
- rs minimum: 0.30 mm
- da minimum: 27.0 mm
- da maximum: 29.0 mm
- Mass: 54.0 g
Which bearing is the LRT253032 specified to assemble with?
The product data states that the LRT253032 is to assemble with RNAFW304232, also listed as assembled bearing RNAFW 304232.
High Carbon Steel Inner Ring Construction
The supplied product information identifies the material as High Carbon Steel in the detailed title and as High Carbon Chrome Steel in the bearing material field. The inner ring is described as metric and for general usage.
What material is recorded for the IKO LRT253032?
The structured data lists the material as high carbon steel and high carbon chrome steel. No additional material grade, certification, application, or performance claim is provided in the supplied product data.
