IKO LRT28030569
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4856

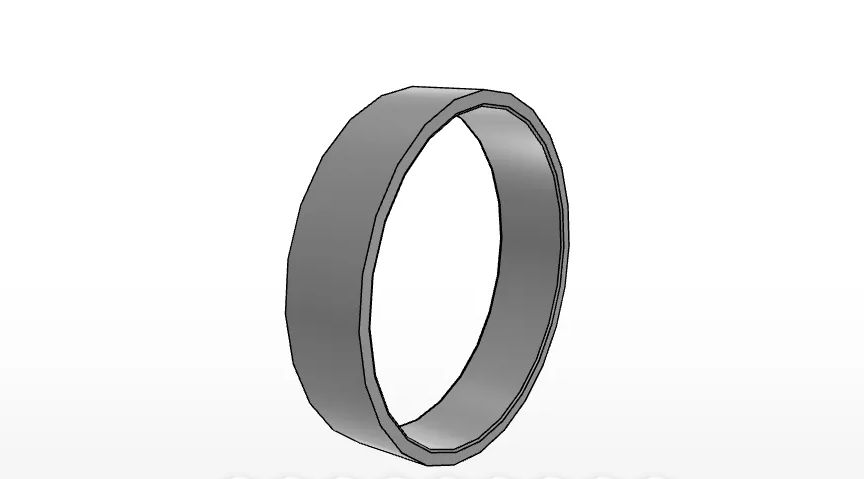

IKO LRT28030569 Inner Ring for Metric Bearing Assembly
The IKO LRT28030569 is an inner ring in the IKO Inner Rings product series. It is listed for general usage and is identified for assembly with RNA4856. The bearing material is listed as high carbon chrome steel, with product data also describing the ring as high carbon steel.
What is the model and intended assembly for this inner ring?
The order number and model designation is LRT28030569. Product data identifies the inner ring for assembly with RNA 4856. Confirm compatibility with the target assembly before selection.

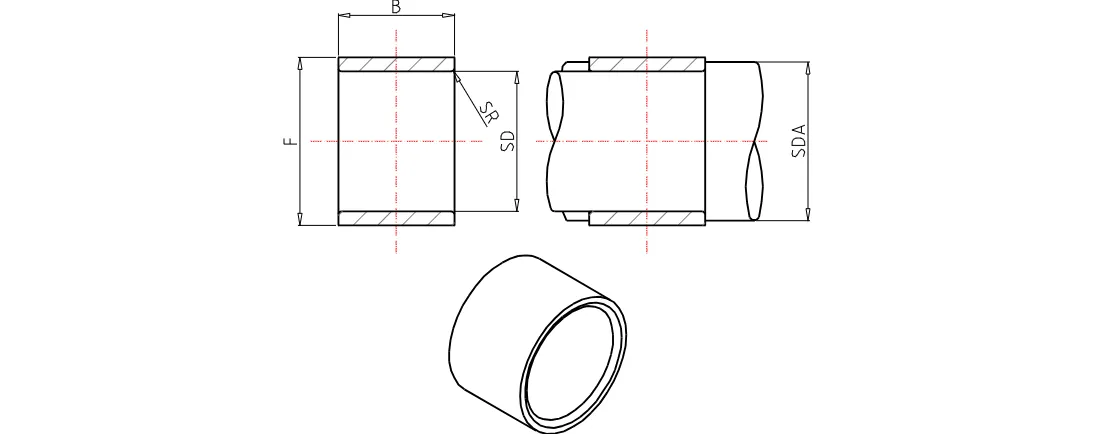

Defined Dimensions for the LRT28030569 Inner Ring
- Shaft diameter / inside diameter: 280 mm
- Outer diameter: 305 mm
- Width: 69 mm
- rs minimum: 2.00 mm
- da minimum: 289.0 mm
- da maximum: 302.0 mm
What are the reported size values for this component?
The supplied data lists a 280 mm shaft and inside diameter, 305 mm outer diameter, and 69 mm width. The minimum edge or fillet dimension is listed as 2.00 mm, while the da range is listed as 289.0 mm to 302.0 mm.
Product Classification and Supplied Physical Data
The LRT28030569 is categorized under Brand > IKO > Inner Rings. Its bearing type is listed as Inner Rings, and the supplied mass is 6050.0 g. No additional performance, stock, certification, or application claims are provided.
What material and mass information are included in the product data?
The list data identifies the bearing material as high carbon chrome steel, while the descriptive title refers to high carbon steel. The listed mass for the inner ring is 6050.0 g. Material treatment, grade, and certification details are not provided in the supplied data.
