IKO LRT283217
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA49/28
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT283217
Shaft Dimaeter
28
mm
Inside Diamater
28
mm
Outer Diameter
32
mm
Width
17
mm
rs min.
0.30
mm
da min
30.0
mm
da max
31.0
mm
Assembled bearings
RNA 49/28
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
24.5
g

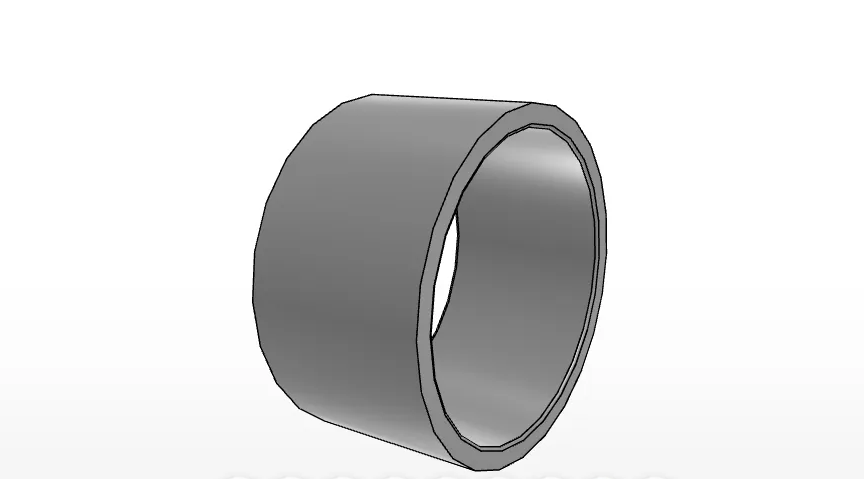

IKO LRT283217 Inner Ring for RNA49/28 Assembly
What is the IKO LRT283217?
The LRT283217 is an IKO metric inner ring in the Inner Rings product series. The supplied data identifies it for assembly with RNA 49/28 bearings and describes it as a general-usage inner ring made from high carbon steel; the list data specifies high carbon chrome steel.
Stated Dimensions and Product Specifications
What dimensions and values are provided for LRT283217?
- Shaft diameter: 28 mm
- Inside diameter: 28 mm
- Outer diameter: 32 mm
- Width: 17 mm
- rs min.: 0.30 mm
- da min.: 30.0 mm
- da max.: 31.0 mm
- Mass: 24.5 g
Assembly and Identification Details
Which bearing and category information should be used to identify this part?
The product is categorized under Brand > IKO > Inner Rings. Its order number is LRT283217, and the supplied data lists the assembled bearing as RNA 49/28. Use these stated identifiers and dimensions when confirming compatibility with the referenced assembly.
