IKO LRT303520
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF354520 and AX3530
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT303520
Shaft Dimaeter
30
mm
Inside Diamater
30
mm
Outer Diameter
35
mm
Width
20
mm
rs min.
0.30
mm
da min
32.0
mm
da max
34.0
mm
Assembled bearings
TAF 354520
Assembled bearings
NAX 3530
Assembled bearings
NBX 3530
Assembled bearings
-
Mass
38.5
g

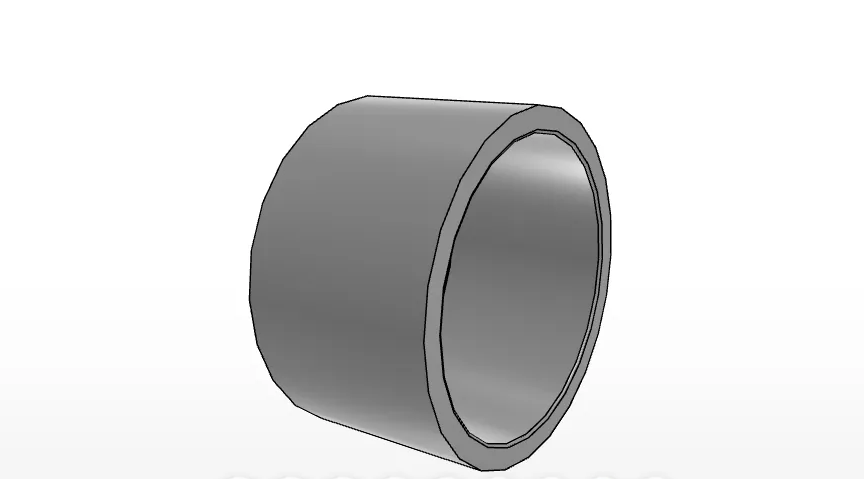

IKO LRT303520 Inner Ring Overview
What is the IKO LRT303520?
The LRT303520 is an IKO inner ring in the Inner Rings series. It is a metric component described for general usage and made from high carbon chrome steel. The product data also identifies the material as high carbon steel.
Metric Dimensions and Specifications

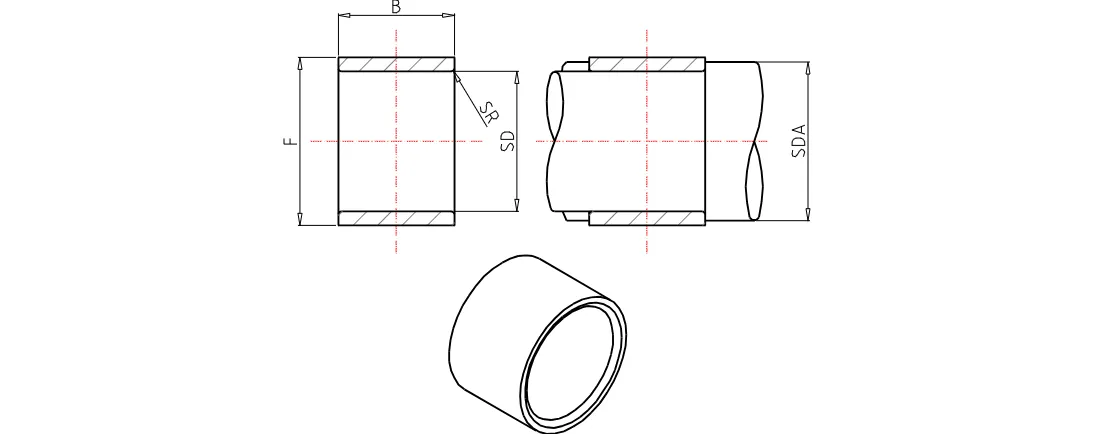

What dimensions apply to this inner ring?
- Inside diameter: 30 mm
- Shaft diameter: 30 mm
- Outer diameter: 35 mm
- Width: 20 mm
- rs minimum: 0.30 mm
- da minimum: 32.0 mm
- da maximum: 34.0 mm
- Mass: 38.5 g
Assembly Compatibility
Which bearings are listed for assembly with the LRT303520?
The product data lists the following assembled bearing references:
- TAF 354520
- NAX 3530
- NBX 3530
The descriptive product title also references assembly with TAF354520 and AX3530. Compatibility should be checked against the required bearing arrangement before selection.
