IKO LRT303526
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW354526

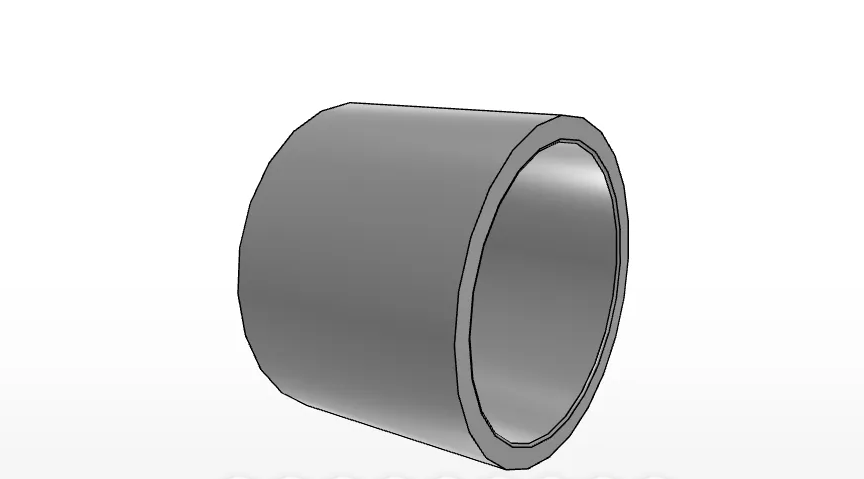

IKO LRT303526 Inner Ring Overview
The IKO LRT303526 is a metric inner ring in the IKO Inner Rings product series. It is listed for assembly with RNAFW354526 and is described for general usage.
What type of component is the LRT303526?
The LRT303526 is classified as an Inner Ring under the category path Brand > IKO > Inner Rings. The product data identifies its material as high carbon chrome steel, also described as high carbon steel.
Metric Dimensions and Specification Details

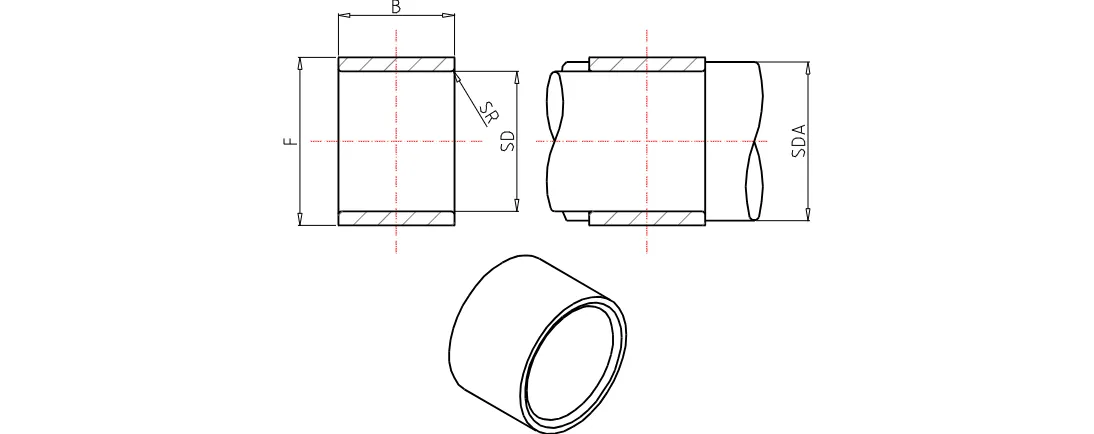

The supplied dimensional data identifies the LRT303526 by its shaft and inside diameter, outside diameter, width, and related edge dimensions. These values should be checked against the mating assembly before installation.
- Shaft diameter: 30 mm
- Inside diameter: 30 mm
- Outer diameter: 35 mm
- Width: 26 mm
- rs minimum: 0.30 mm
- da minimum: 32.0 mm
- da maximum: 34.0 mm
- Mass: 52.0 g
What are the stated size values for the IKO LRT303526?
The inner ring has a 30 mm inside diameter, 35 mm outer diameter, and 26 mm width. The product record also lists a minimum chamfer dimension of 0.30 mm and da limits of 32.0 mm minimum and 34.0 mm maximum.
Assembly Reference for RNAFW354526
The product data identifies the LRT303526 as an inner ring intended to assemble with the RNAFW354526 bearing reference. Confirm compatibility using the listed dimensions and the requirements of the intended assembly.
Which assembled bearing reference is listed for this inner ring?
The supplied record lists RNAFW354526 as the assembled bearing reference. The order number is LRT303526, and the component mass is stated as 52.0 g.
