IKO LRT303530
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA6906 and AF354530

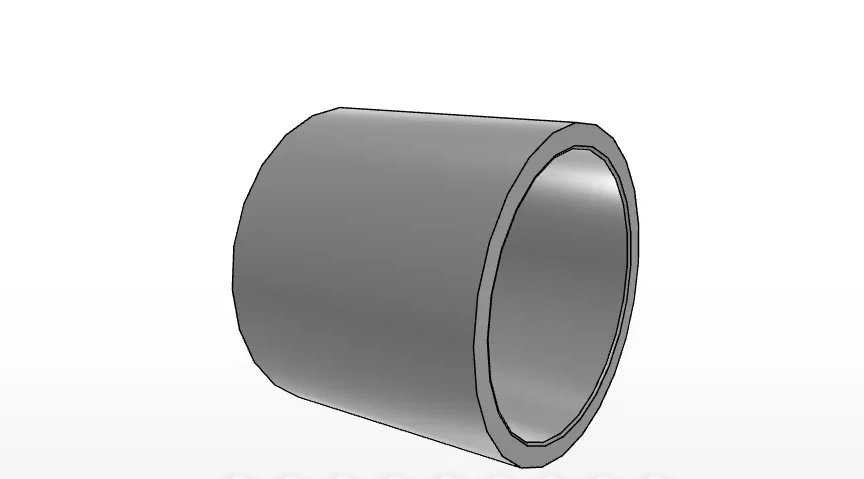

IKO LRT303530 Inner Ring for Metric Bearing Assemblies
The IKO LRT303530 is an inner ring in the IKO Inner Rings series. It is categorized under Brand > IKO > Inner Rings and is identified for general metric usage with specified mating bearings.
What bearing series and brand does the LRT303530 belong to?
The LRT303530 is an IKO Inner Ring. Product information identifies it for assembly with RNA 6906 and TAF 354530 bearings.

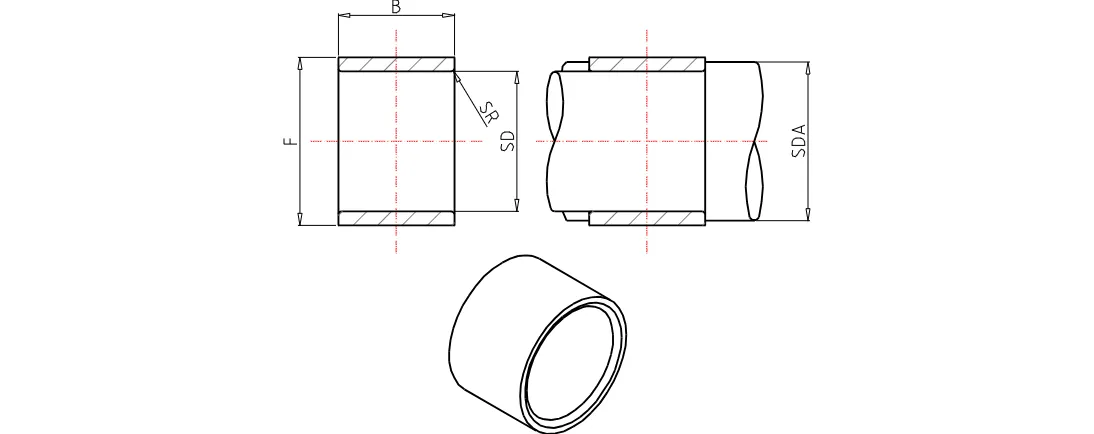

LRT303530 Dimensions and Material Specification
- Shaft diameter: 30 mm
- Inside diameter: 30 mm
- Outer diameter: 35 mm
- Width: 30 mm
- rs minimum: 0.30 mm
- da minimum: 32.0 mm
- da maximum: 34.0 mm
- Mass: 59.0 g
- Material: High carbon chrome steel
What are the stated size and material details?
The supplied data lists the inner ring as 30 mm inside diameter, 35 mm outer diameter, and 30 mm wide. The bearing material is listed as high carbon chrome steel; the descriptive title also refers to high carbon steel.
LRT303530 Assembly Reference Information
The product record identifies the LRT303530 inner ring for use with the RNA 6906 and TAF 354530 bearing references. The listed minimum and maximum da values and minimum rs value can be checked against the corresponding assembly requirements.
Which assembled bearings are named for this inner ring?
The supplied product data names RNA 6906 and TAF 354530 as assembled bearing references. Use these references when matching this inner ring to the stated bearing configuration.
