IKO LRT323730
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF374730
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT323730
Shaft Dimaeter
32
mm
Inside Diamater
32
mm
Outer Diameter
37
mm
Width
30
mm
rs min.
0.30
mm
da min
34.0
mm
da max
36.0
mm
Assembled bearings
TAF 374730
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
63.0
g

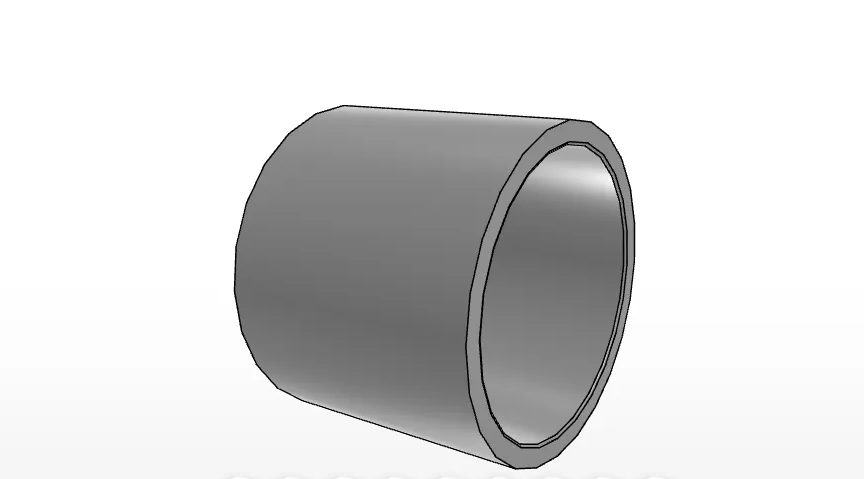

IKO LRT323730 Metric Inner Ring
What is the IKO LRT323730?
The LRT323730 is an IKO Inner Ring from the Inner Rings product series. It is listed under the category path Brand > IKO > Inner Rings and is intended for assembly with TAF374730.
Specified Dimensions and Material Details
What dimensions and material are provided for this inner ring?
The supplied product data lists the following details for the LRT323730:
- Shaft diameter: 32 mm
- Inside diameter: 32 mm
- Outer diameter: 37 mm
- Width: 30 mm
- rs minimum: 0.30 mm
- da minimum: 34.0 mm
- da maximum: 36.0 mm
- Material: High carbon chrome steel, also described in the product introduction as high carbon steel
- Mass: 63.0 g
Assembly Information for LRT323730
Which bearing is identified for assembly with this ring?
The product data identifies TAF 374730 as the assembled bearing for use with the LRT323730 inner ring. Verify compatibility with the selected bearing and shaft arrangement before ordering or installation.
