IKO LRT324020
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA49/32
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT324020
Shaft Dimaeter
32
mm
Inside Diamater
32
mm
Outer Diameter
40
mm
Width
20
mm
rs min.
0.60
mm
da min
36.0
mm
da max
39.0
mm
Assembled bearings
RNA 49/32
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
69.0
g

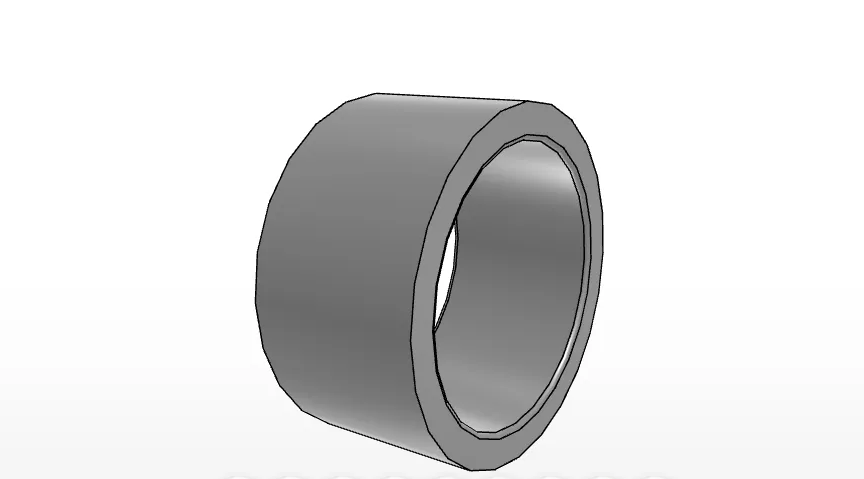

IKO LRT324020 Inner Ring Specification
The IKO LRT324020 is an Inner Ring in the IKO Inner Rings product series. It has a metric bore of 32 mm, an outer diameter of 40 mm, and a width of 20 mm.
What are the dimensions of the LRT324020?
- Model: LRT324020
- Brand: IKO
- Bearing type: Inner Ring
- Shaft / inside diameter: 32 mm
- Outside diameter: 40 mm
- Width: 20 mm
LRT324020 Material and Assembly Details
The listed bearing material for the LRT324020 is High Carbon Chrome Steel. Product data identifies it for assembly with RNA 49/32.
What related measurement data is provided?
- rs min.: 0.60 mm
- da min.: 36.0 mm
- da max.: 39.0 mm
- Mass: 69.0 g
- Assembled bearing reference: RNA 49/32
IKO Inner Ring Product Identification
The LRT324020 is listed within the category path Brand > IKO > Inner Rings. The product title describes it as a metric inner ring for general usage and assembly with RNA49/32.
How is the LRT324020 identified for ordering?
The order number is LRT324020. It is an IKO Inner Ring with the supplied metric dimensions and material description; use the listed dimensions when verifying compatibility with the intended assembly.
