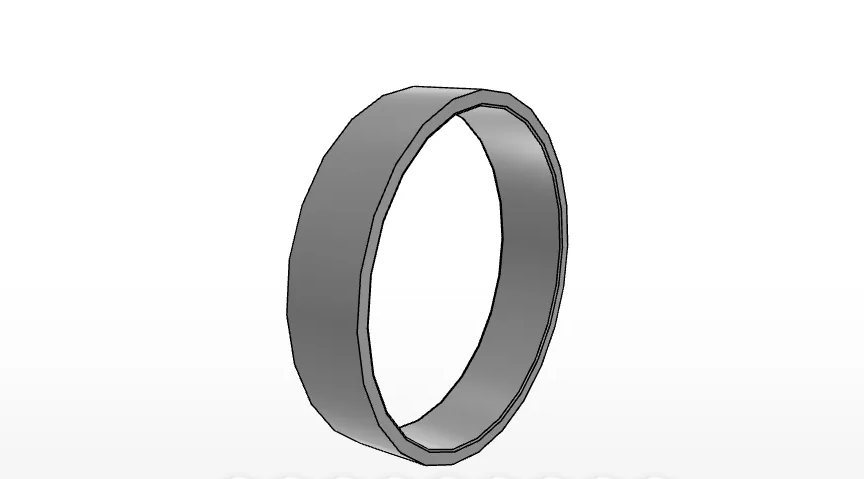

IKO LRT34037080
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4868
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT34037080
Shaft Dimaeter
340
mm
Inside Diamater
340
mm
Outer Diameter
370
mm
Width
80
mm
rs min.
2.10
mm
da min
351.0
mm
da max
367.0
mm
Assembled bearings
RNA 4868
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
10200.0
g
IKO LRT34037080 Inner Ring for Metric Bearing Arrangements
What is the IKO LRT34037080?
The LRT34037080 is an IKO inner ring within the Inner Rings product series. It is a metric inner ring identified for general usage and supplied data indicates it is intended to assemble with bearing model RNA4868.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner ring
- Category path: Brand > IKO > Inner Rings
LRT34037080 Dimensions and Construction Details
What dimensions and material are listed for this inner ring?
The supplied product data lists the following measurements and material information for the LRT34037080:
- Shaft diameter: 340 mm
- Inside diameter: 340 mm
- Outer diameter: 370 mm
- Width: 80 mm
- rs minimum: 2.10 mm
- da minimum: 351.0 mm
- da maximum: 367.0 mm
- Material: High carbon chrome steel, also described in the product title as high carbon steel
- Mass: 10,200.0 g
RNA4868 Assembly Reference for the IKO Inner Ring
Which assembled bearing is referenced with the LRT34037080?
The product data identifies RNA4868 as the assembled bearing reference for the LRT34037080. When selecting or replacing an inner ring, compare the order number, bore size, outside diameter, width, edge clearance values, and assembly reference against the required bearing arrangement.
- Confirm the required inner ring model is LRT34037080.
- Verify the 340 mm inside diameter, 370 mm outer diameter, and 80 mm width.
- Check the listed RNA4868 assembly reference for the intended arrangement.
