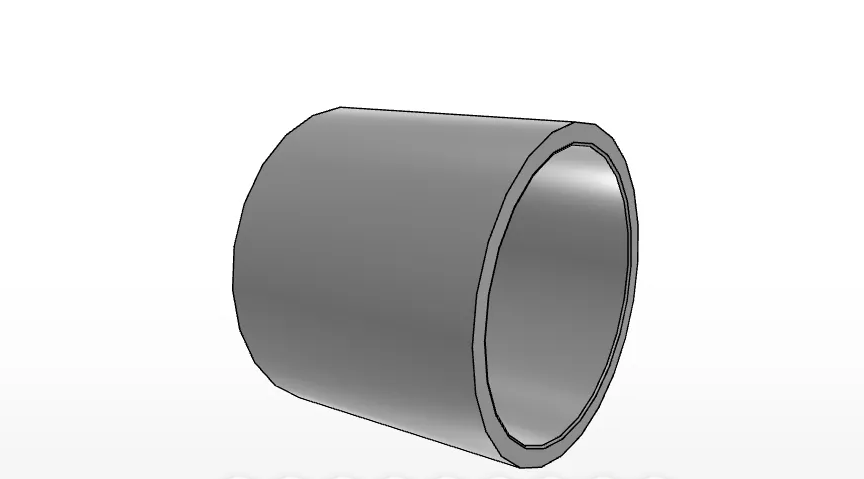

IKO LRT354034
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW405034
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT354034
Shaft Dimaeter
35
mm
Inside Diamater
35
mm
Outer Diameter
40
mm
Width
34
mm
rs min.
0.30
mm
da min
37.0
mm
da max
39.0
mm
Assembled bearings
RNAFW 405034
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
78.0
g
IKO LRT354034 Inner Ring Introduction
What is the IKO LRT354034?
The IKO LRT354034 is an inner ring in the IKO Inner Rings product series. It is listed as a metric, general-usage inner ring intended to assemble with RNAFW405034.

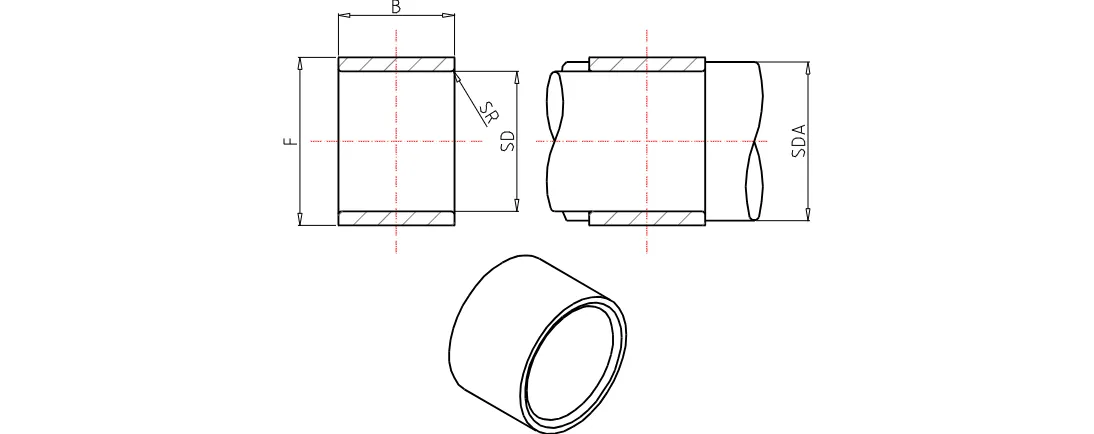

LRT354034 Dimensions and Product Data
What dimensions and values are provided for the LRT354034?
- Shaft diameter: 35 mm
- Inside diameter: 35 mm
- Outer diameter: 40 mm
- Width: 34 mm
- rs min.: 0.30 mm
- da min.: 37.0 mm
- da max.: 39.0 mm
- Mass: 78.0 g
Material and Assembly Information for LRT354034
What material and assembly details are specified?
The bearing material is listed as High Carbon Chrome Steel, while the title introduction references high carbon steel. The product data identifies RNAFW 405034 as the assembled bearing. The category path is Brand > IKO > Inner Rings.
