IKO LRT354040
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW405540

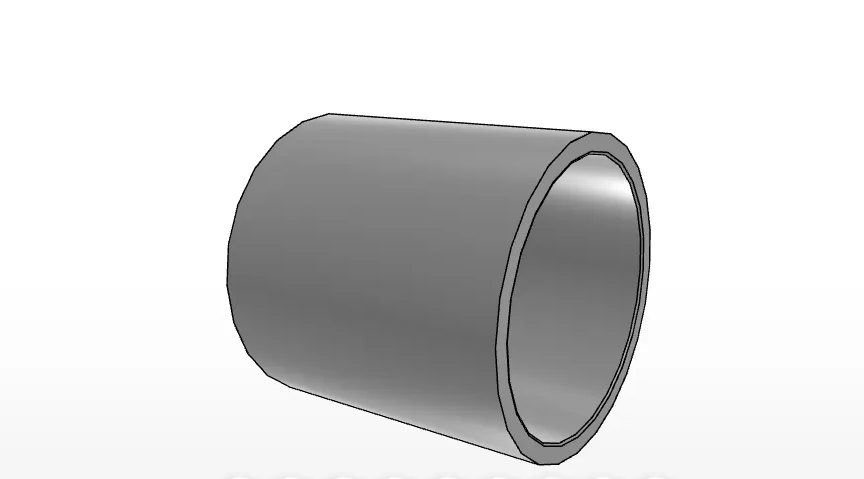

The IKO LRT354040 Is a Metric Inner Ring
What are the basic identification details for the LRT354040?
The LRT354040 is an IKO inner ring within the Inner Rings product series. The supplied data identifies it as a metric inner ring for assembly with RNAFW405540. Its listed bearing material is high carbon chrome steel, also described in the product data as high carbon steel.
- Brand: IKO
- Series: Inner Rings
- Model: LRT354040
- Bearing type: Inner ring
- Category: Brand > IKO > Inner Rings
The LRT354040 Has Documented Metric Dimensions
What dimensions are provided for this inner ring?
The supplied specifications list a shaft diameter and inside diameter of 35 mm, an outer diameter of 40 mm, and a width of 40 mm. The minimum chamfer dimension is listed as 0.30 mm, while the da dimension is listed from 37.0 mm minimum to 39.0 mm maximum.
- Inside diameter: 35 mm
- Outer diameter: 40 mm
- Width: 40 mm
- rs min.: 0.30 mm
- da min.: 37.0 mm
- da max.: 39.0 mm
The LRT354040 Is Listed for RNAFW405540 Assembly
What assembly and mass information is included in the product data?
The product data identifies the LRT354040 as an inner ring to assemble with RNAFW405540, also written as RNAFW 405540. The listed mass is 95.0 g. No additional compatibility, application, stock, certification, or performance details are provided.
- Assembled bearing reference: RNAFW405540
- Usage description: General usage
- Mass: 95.0 g
