IKO LRT380415100
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4876
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT380415100
Shaft Dimaeter
380
mm
Inside Diamater
380
mm
Outer Diameter
415
mm
Width
100
mm
rs min.
2.10
mm
da min
391.0
mm
da max
412.0
mm
Assembled bearings
RNA 4876
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
16700.0
g

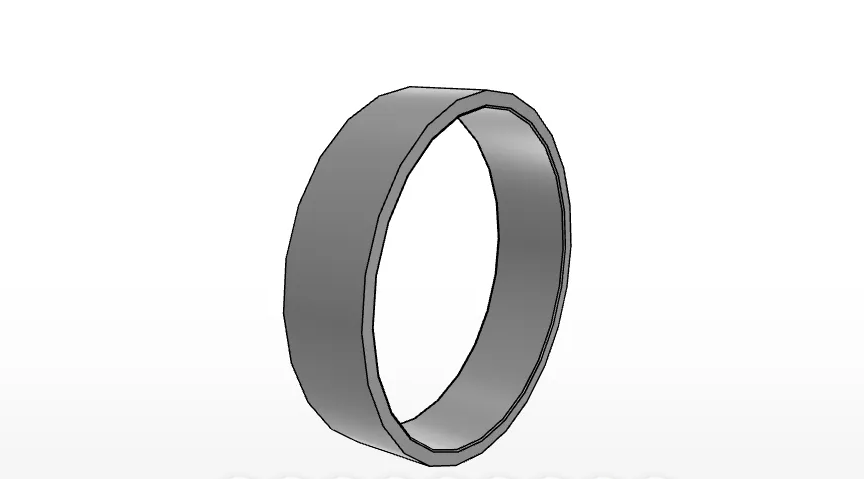

IKO LRT380415100 Metric Inner Ring
What is the IKO LRT380415100?
The LRT380415100 is an IKO Inner Rings series metric inner ring. It is identified as an inner ring intended for assembly with RNA4876 and is listed under Brand > IKO > Inner Rings.
Specified Dimensions and Material
What dimensions and material are provided for this inner ring?
- Shaft diameter / inside diameter: 380 mm
- Outer diameter: 415 mm
- Width: 100 mm
- rs min.: 2.10 mm
- da min.: 391.0 mm
- da max.: 412.0 mm
- Material: High carbon chrome steel
- Mass: 16,700.0 g
Assembly Reference and Identification
Which assembled bearing is referenced, and how is it ordered?
The supplied data lists the order number as LRT380415100 and the assembled bearing reference as RNA 4876. Use the listed dimensions and assembly reference to confirm compatibility with the intended bearing arrangement.
