IKO LRT404530
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF455530
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT404530
Shaft Dimaeter
40
mm
Inside Diamater
40
mm
Outer Diameter
45
mm
Width
30
mm
rs min.
0.30
mm
da min
42.0
mm
da max
44.0
mm
Assembled bearings
TAF 455530
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
77.0
g

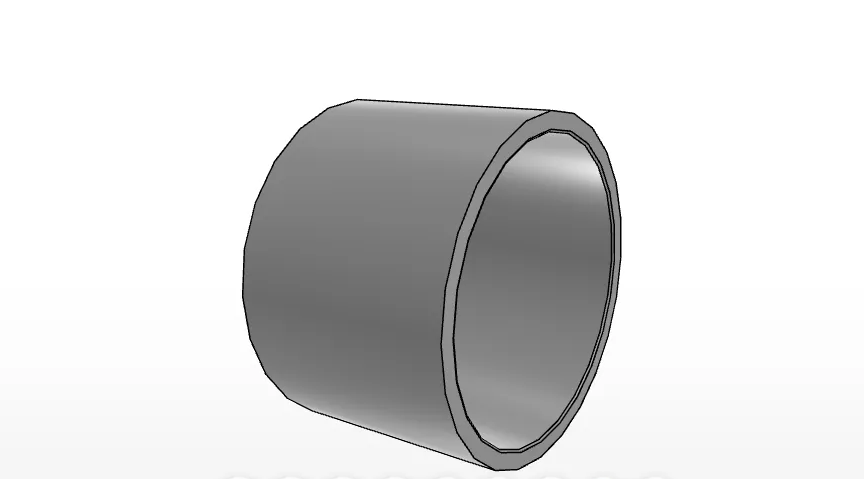

The IKO LRT404530 Is a Metric Inner Ring
What is the IKO LRT404530?
The IKO LRT404530 is an inner ring within the IKO Inner Rings series. It is listed for general usage and is intended to assemble with the TAF 455530 bearing.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Order number: LRT404530
The LRT404530 Has Documented Metric Dimensions
What dimensions and fitment values are provided?
The supplied product data lists the following dimensions and related values for the LRT404530 inner ring:
- Shaft diameter: 40 mm
- Inside diameter: 40 mm
- Outer diameter: 45 mm
- Width: 30 mm
- rs minimum: 0.30 mm
- da minimum: 42.0 mm
- da maximum: 44.0 mm
- Mass: 77.0 g
The LRT404530 Is Made from High Carbon Chrome Steel
What material and assembly information is specified?
The product data identifies the bearing material as high carbon chrome steel, while the descriptive title refers to high carbon steel. It also specifies that this inner ring is designed to assemble with TAF 455530.
- Confirm the required model is LRT404530.
- Review the stated dimensions: 40 mm x 45 mm x 30 mm.
- Verify compatibility with the listed assembled bearing, TAF 455530.
