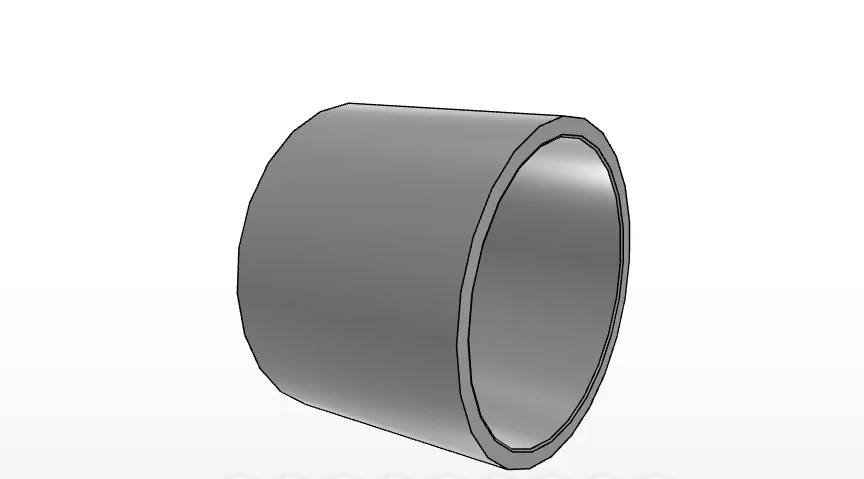

IKO LRT404534
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4856
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT404534
Shaft Dimaeter
40
mm
Inside Diamater
40
mm
Outer Diameter
45
mm
Width
34
mm
rs min.
0.30
mm
da min
42.0
mm
da max
44.0
mm
Assembled bearings
RNAFW 455534
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
88.0
g
The IKO LRT404534 Is a Metric Inner Ring
What are the basic identity details of the IKO LRT404534?
The IKO LRT404534 is part of the IKO Inner Rings product series. It is listed under the category path Brand > IKO > Inner Rings and is described as a metric inner ring for general usage.
- Order number: LRT404534
- Brand: IKO
- Bearing type: Inner Rings
- Measurement standard: Metric
The LRT404534 Has Defined Bore, Outer Diameter, and Width Dimensions
What dimensions and edge values are provided for the inner ring?
The supplied product data lists the following dimensional values for the LRT404534:
- Shaft diameter: 40 mm
- Inside diameter: 40 mm
- Outer diameter: 45 mm
- Width: 34 mm
- rs minimum: 0.30 mm
- da minimum: 42.0 mm
- da maximum: 44.0 mm
The LRT404534 Uses High Carbon Chrome Steel and Has Assembly Data
What material, assembly, and mass information is included in the product record?
The bearing material is listed as high carbon chrome steel, while the title description refers to high carbon steel. The supplied assembly data identifies RNAFW 455534 as an assembled bearing and also notes assembly with RNA4856. The recorded mass is 88.0 g.
- Material: High carbon chrome steel
- Assembled bearing listed: RNAFW 455534
- Assembly noted in title: RNA4856
- Mass: 88.0 g
