IKO LRT404822
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4908

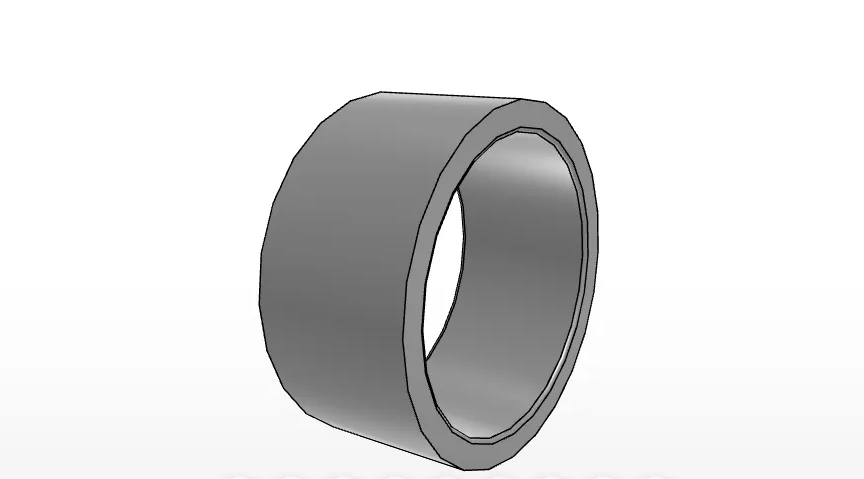

IKO LRT404822 Inner Ring Overview
The IKO LRT404822 is a metric inner ring in the IKO Inner Rings product series. It is designed for assembly with RNA 4908 bearings and provides a precision raceway surface for needle roller bearing arrangements.

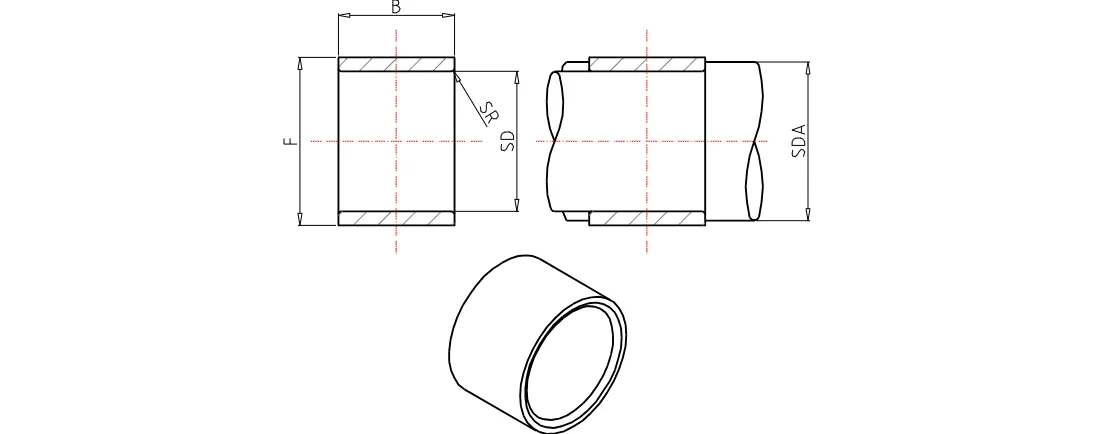

What are the basic dimensions of the LRT404822?
This inner ring features a 40 mm shaft and inside diameter, a 48 mm outer diameter, and a 22 mm width. The listed mass is 93.0 g.
Material and Construction Details
The LRT404822 is manufactured from high carbon chrome steel, as specified in the product data. The product detail description also references high carbon steel for this general-usage metric inner ring.
What edge and fillet dimensions apply?
- rs minimum: 0.60 mm
- da minimum: 44.0 mm
- da maximum: 47.0 mm
Assembly and Product Identification
The order number for this component is LRT404822, and it is categorized under Brand > IKO > Inner Rings. The specified assembled bearing designation is RNA 4908.
Which bearing is the LRT404822 intended to assemble with?
According to the supplied product data, the LRT404822 inner ring is to be assembled with the RNA 4908 bearing. Confirm compatibility with your full assembly requirements before selection.
