IKO LRT404840
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA6908
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT404840
Shaft Dimaeter
40
mm
Inside Diamater
40
mm
Outer Diameter
48
mm
Width
40
mm
rs min.
0.60
mm
da min
44.0
mm
da max
47.0
mm
Assembled bearings
RNA 6908
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
165.0
g
The IKO LRT404840 Is a Metric Inner Ring

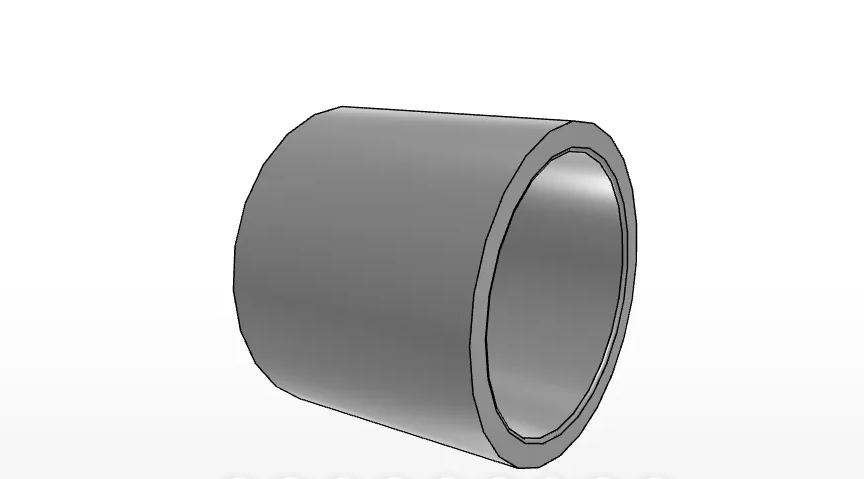

What is the IKO LRT404840?
The IKO LRT404840 is part of the IKO Inner Rings product series. It is listed as a metric inner ring for general usage and is referenced for assembly with RNA 6908.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Category path: Brand > IKO > Inner Rings
The LRT404840 Has Defined Metric Dimensions

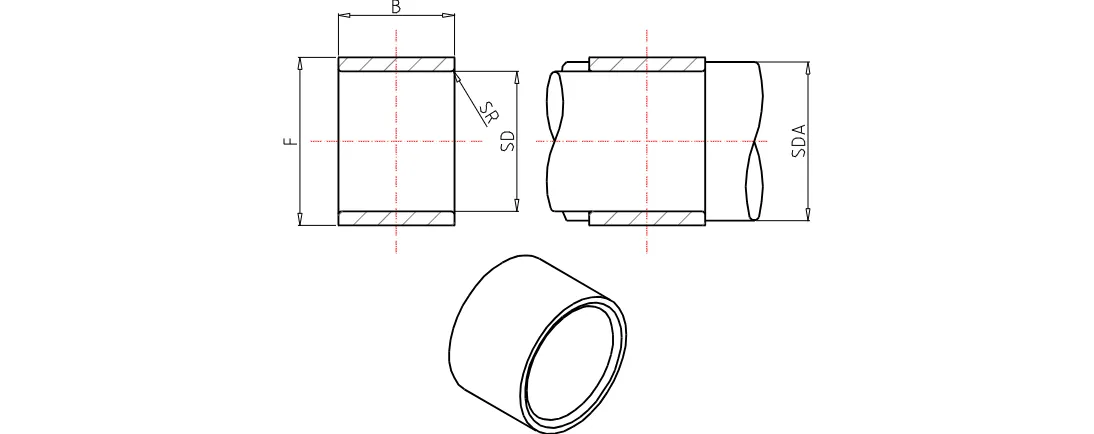

What dimensions are provided for the LRT404840?
The supplied product data lists the following measurements for selection and identification:
- Shaft diameter: 40 mm
- Inside diameter: 40 mm
- Outer diameter: 48 mm
- Width: 40 mm
- rs min.: 0.60 mm
- da min.: 44.0 mm
- da max.: 47.0 mm
- Mass: 165.0 g
The IKO Inner Ring Uses High Carbon Chrome Steel
What material and assembly information is supplied?
The structured data identifies the bearing material as high carbon chrome steel; the descriptive title also refers to high carbon steel. The product information states that the inner ring is to assemble with RNA 6908. No additional compatibility, performance, certification, or application claims are provided.
- Confirm the required 40 mm inside diameter and 48 mm outer diameter.
- Verify the 40 mm width and 0.60 mm minimum corner radius against the mating parts.
- Use the listed RNA 6908 assembly reference when checking the intended arrangement.
