IKO LRT424830
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TR486230
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT424830
Shaft Dimaeter
42
mm
Inside Diamater
42
mm
Outer Diameter
48
mm
Width
31
mm
rs min.
0.60
mm
da min
46.0
mm
da max
47.0
mm
Assembled bearings
TR 486230
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
100.0
g

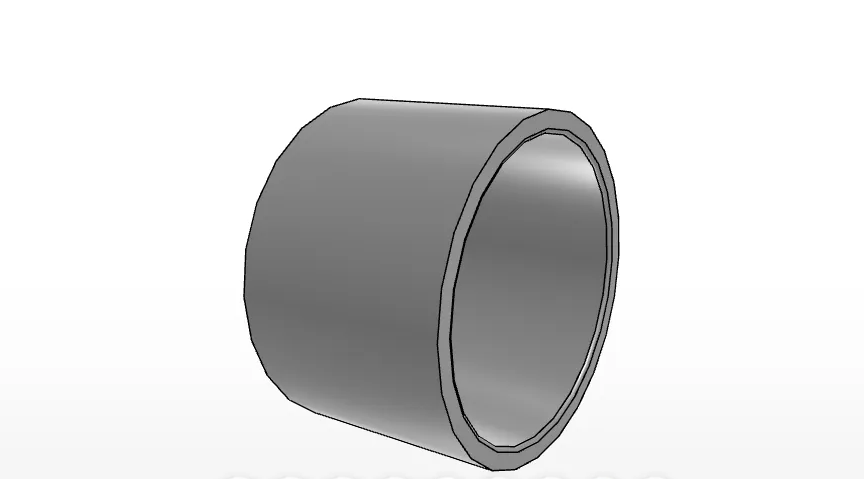

The IKO LRT424830 Is a Metric Inner Ring
What type of component is the LRT424830?
The IKO LRT424830 is listed in the Inner Rings product series under the IKO brand. It is a metric inner ring identified for general usage and is designed to assemble with TR486230.
- Brand: IKO
- Series: Inner Rings
- Order Number: LRT424830
- Assembly Reference: TR486230
The LRT424830 Uses Listed Metric Dimensions
What dimensions and related values are provided for this inner ring?
The supplied product data lists the following measurements for the LRT424830:
- Shaft diameter / inside diameter: 42 mm
- Outer diameter: 48 mm
- Width: 31 mm
- rs minimum: 0.60 mm
- da minimum: 46.0 mm
- da maximum: 47.0 mm
- Mass: 100.0 g
The LRT424830 Is Listed with Steel Construction
What material information is supplied for the IKO inner ring?
The product data identifies the bearing material as high carbon chrome steel, while the detailed title also refers to high carbon steel. No additional material grade, finish, certification, or performance claim is provided in the supplied data.
- Bearing type: Inner Rings
- Listed bearing material: High carbon chrome steel
- Category path: Brand > IKO > Inner Rings
