IKO LRT455025
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF506225, NBX5035, and NAX5035
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT455025
Shaft Dimaeter
45
mm
Inside Diamater
45
mm
Outer Diameter
50
mm
Width
25
mm
rs min.
0.30
mm
da min
47.0
mm
da max
49.0
mm
Assembled bearings
TAF 506225
Assembled bearings
NAX 5035
Assembled bearings
NBX 5035
Assembled bearings
-
Mass
71.0
g
IKO LRT455025 Metric Inner Ring
What is the IKO LRT455025?
The LRT455025 is an IKO inner ring in the Inner Rings series. It is a metric inner ring listed for general usage and made from high carbon chrome steel, also described in the product data as high carbon steel.

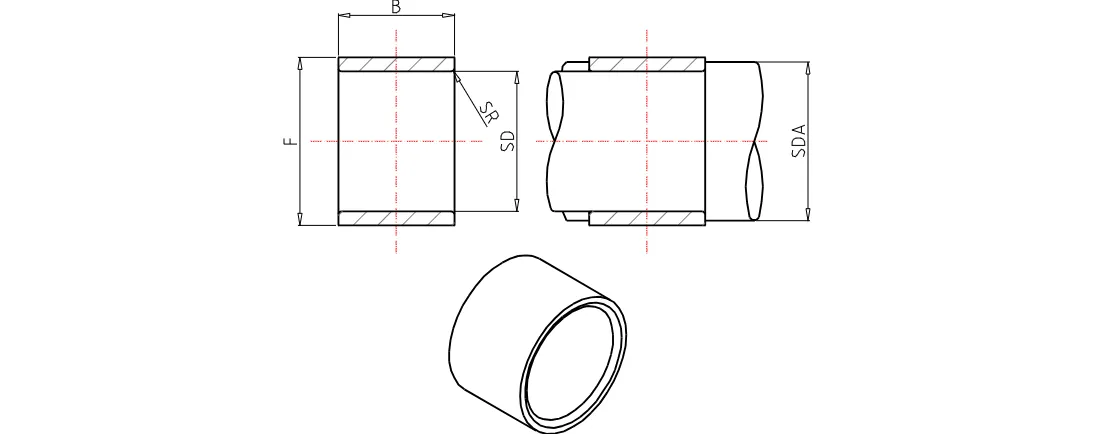

LRT455025 Dimensions and Product Data
What dimensions and fitment values are provided?
- Shaft diameter: 45 mm
- Inside diameter: 45 mm
- Outer diameter: 50 mm
- Width: 25 mm
- rs min.: 0.30 mm
- da min.: 47.0 mm
- da max.: 49.0 mm
- Mass: 71.0 g
LRT455025 Assembly Information
Which bearings are listed for assembly with this inner ring?
The product data identifies the LRT455025 for assembly with the following bearings:
- TAF 506225
- NAX 5035
- NBX 5035
This inner ring belongs to the category path Brand > IKO > Inner Rings.
