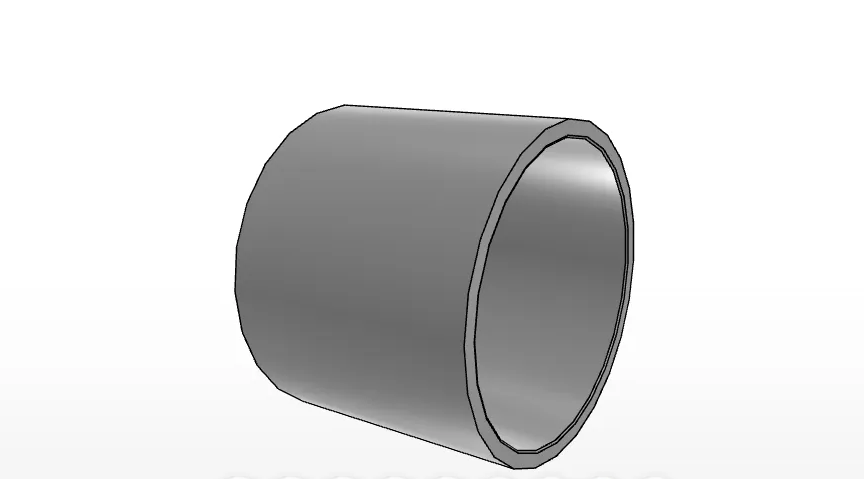

IKO LRT455040
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW506240
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT455040
Shaft Dimaeter
45
mm
Inside Diamater
45
mm
Outer Diameter
50
mm
Width
40
mm
rs min.
0.30
mm
da min
47.0
mm
da max
49.0
mm
Assembled bearings
RNAFW 506240
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
115.0
g
The IKO LRT455040 Is a Metric Inner Ring
What are the basic identification details for the LRT455040?
The LRT455040 is an IKO inner ring in the Inner Rings product series. It is listed under the category path Brand > IKO > Inner Rings and is identified by order number LRT455040.
- Model: LRT455040
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
The LRT455040 Provides Specified Metric Dimensions and Material
What dimensions and material are provided for this inner ring?
The supplied product data lists the inner ring as metric, with a shaft diameter and inside diameter of 45 mm, an outer diameter of 50 mm, and a width of 40 mm. Its stated bearing material is high carbon chrome steel; the title also refers to high carbon steel.
- Shaft diameter: 45 mm
- Inside diameter: 45 mm
- Outer diameter: 50 mm
- Width: 40 mm
- rs minimum: 0.30 mm
- da minimum: 47.0 mm
- da maximum: 49.0 mm
- Mass: 115.0 g
The LRT455040 Is Referenced for Assembly with RNAFW 506240
Which assembled bearing is associated with the LRT455040?
The product title identifies the LRT455040 as an inner ring to assemble with RNAFW506240. The detailed data also lists RNAFW 506240 under assembled bearings.
- Confirm the target assembly is RNAFW 506240.
- Review the listed 45 mm bore, 50 mm outer diameter, and 40 mm width against the assembly requirement.
- Use the supplied rs and da values when checking the installation configuration.
