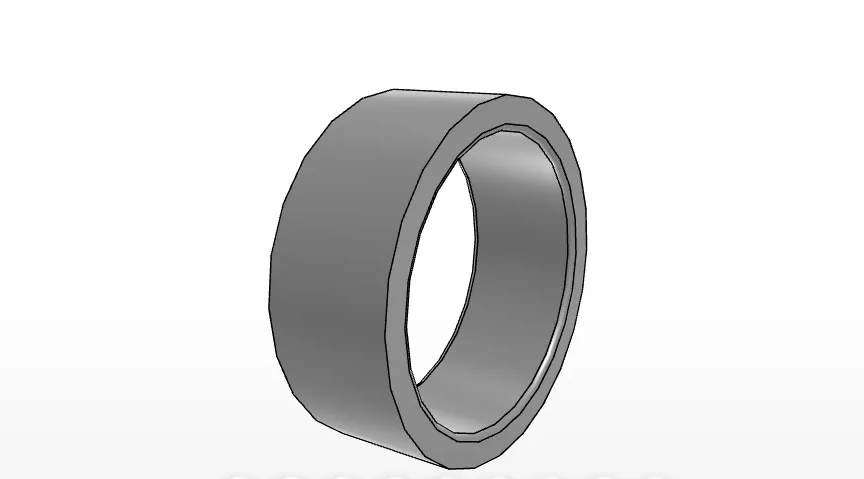

IKO LRT455520

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAF557220
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT455520

Order Number LRT455520
Shaft Dimaeter 45 mm
Inside Diamater 45 mm
Outer Diameter 55 mm
Width 20 mm
rs min. 1.00 mm
da min 50.0 mm
da max 54.0 mm
Assembled bearings RNAF 557220
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 120.0 g

IKO LRT455520 Inner Ring Specifications

What are the stated dimensions of the LRT455520?

The IKO LRT455520 is a metric inner ring listed in the Inner Rings series. The supplied data identifies the following dimensions:

  • Shaft / inside diameter: 45 mm
  • Outside diameter: 55 mm
  • Width: 20 mm
  • rs minimum: 1.00 mm
  • da minimum: 50.0 mm
  • da maximum: 54.0 mm

IKO LRT455520 Material and Product Identity

What material information is provided for this inner ring?

The product data lists the bearing material as high carbon chrome steel. The title information also refers to the component as an inner ring for general usage and identifies the brand as IKO.

IKO LRT455520 Assembly Reference and Mass

Which assembled bearing and mass are recorded in the product data?

The supplied data identifies the LRT455520 as an inner ring to assemble with RNAF 557220. The recorded mass is 120.0 g. Additional compatibility should be checked against the relevant bearing or equipment requirements.
