IKO LRT455540
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW557240
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT455540
Shaft Dimaeter
45
mm
Inside Diamater
45
mm
Outer Diameter
55
mm
Width
40
mm
rs min.
1.00
mm
da min
50.0
mm
da max
54.0
mm
Assembled bearings
RNAFW 557240
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
245.0
g
IKO LRT455540 Metric Inner Ring

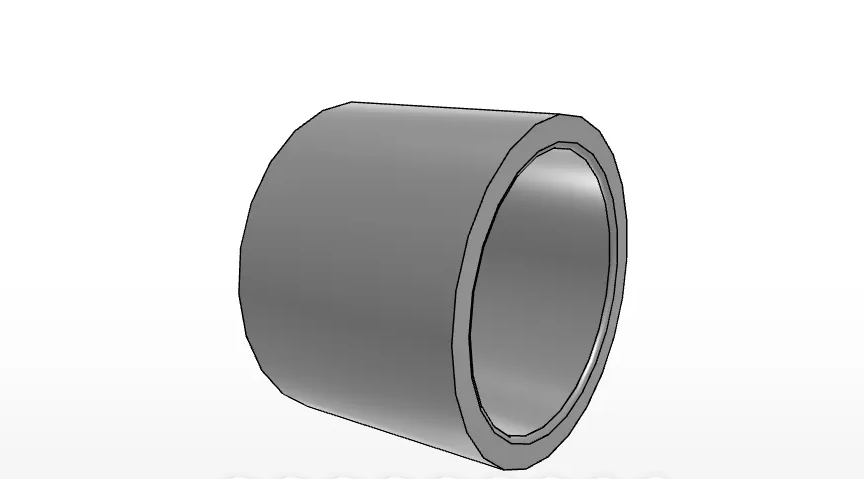

What is the IKO LRT455540?
The LRT455540 is an IKO inner ring in the Inner Rings product series. It is listed as a metric inner ring for general usage and is designed to assemble with RNAFW557240.

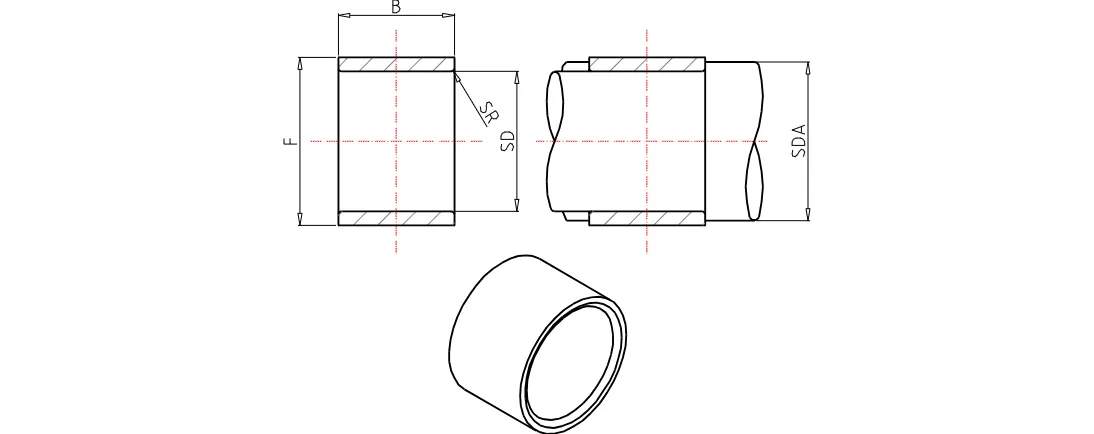

Stated Dimensions and Material Details
What dimensions and material are specified for this inner ring?
- Shaft / inside diameter: 45 mm
- Outer diameter: 55 mm
- Width: 40 mm
- rs minimum: 1.00 mm
- da minimum: 50.0 mm
- da maximum: 54.0 mm
- Material: High carbon chrome steel
Assembly and Product Identification
How is the LRT455540 identified for selection?
The order number is LRT455540, and the supplied category path is Brand > IKO > Inner Rings. The product data lists RNAFW557240 as the assembled bearing and gives the mass as 245.0 g.
