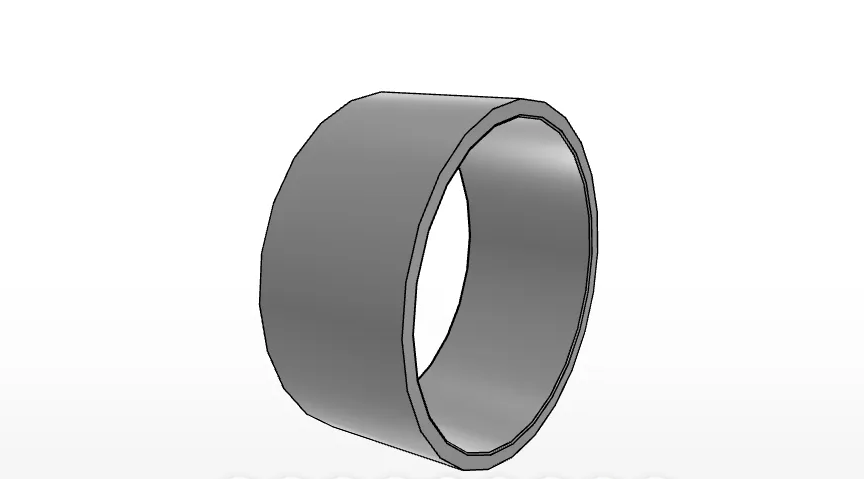

IKO LRT505525

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF556825
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT505525

Order Number LRT505525
Shaft Dimaeter 50 mm
Inside Diamater 50 mm
Outer Diameter 55 mm
Width 25 mm
rs min. 0.30 mm
da min 52.0 mm
da max 54.0 mm
Assembled bearings TAF 556825
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 77.0 g

IKO LRT505525 Inner Ring Introduction

The IKO LRT505525 is a metric inner ring in the IKO Inner Rings product series. The listed product title identifies it as an inner ring for general usage, intended to assemble with TAF556825.

What type of bearing component is the LRT505525?

The structured data classifies the LRT505525 as an Inner Ring within the category path Brand > IKO > Inner Rings. Its order number is LRT505525.

LRT505525 Dimensions and Assembly Data

The supplied data lists the following metric dimensions and reference values for the IKO LRT505525 inner ring:

  • Shaft diameter / inside diameter: 50 mm
  • Outer diameter: 55 mm
  • Width: 25 mm
  • rs minimum: 0.30 mm
  • da minimum: 52.0 mm
  • da maximum: 54.0 mm
  • Mass: 77.0 g
  • Assembled bearing reference: TAF 556825

What bearing is referenced for assembly with the LRT505525?

The product data identifies TAF 556825 as the assembled bearing reference. Compatibility should be checked against the selected bearing arrangement using these supplied dimensions.

LRT505525 Material Information

The list data identifies the bearing material as High Carbon Chrome Steel. The detailed title also describes the component as high carbon steel; no additional material grade or certification details are supplied.

What material details are available for the LRT505525?

The available structured product data names High Carbon Chrome Steel as the bearing material. No further specification, heat treatment, grade, or certification information is provided in the source data.
