IKO LRT505535
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF556835

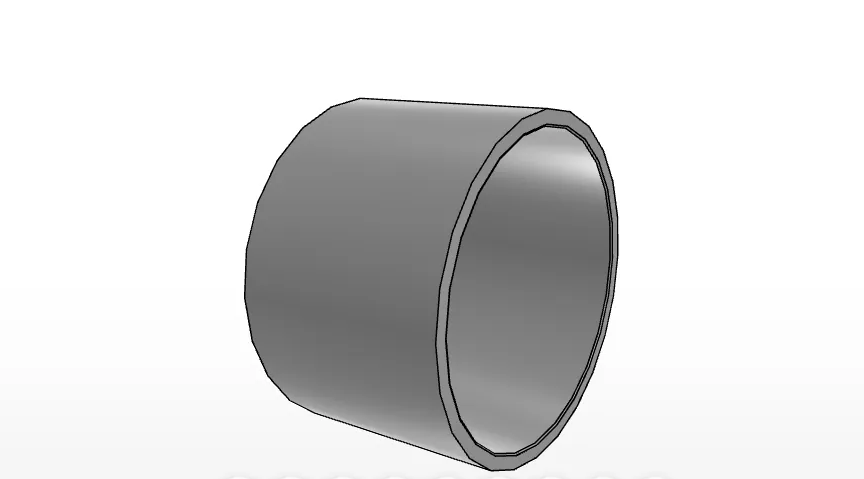

IKO LRT505535 Inner Ring Overview
The IKO LRT505535 is a metric inner ring in the IKO Inner Rings product series. It is designed to assemble with TAF 556835 and is listed for general usage. The bearing material is identified as high carbon chrome steel in the supplied product data.
What type of component is the LRT505535?
The LRT505535 is classified as an Inner Ring within the IKO Inner Rings series. The category path is Brand > IKO > Inner Rings.
Metric Dimensions and Product Details

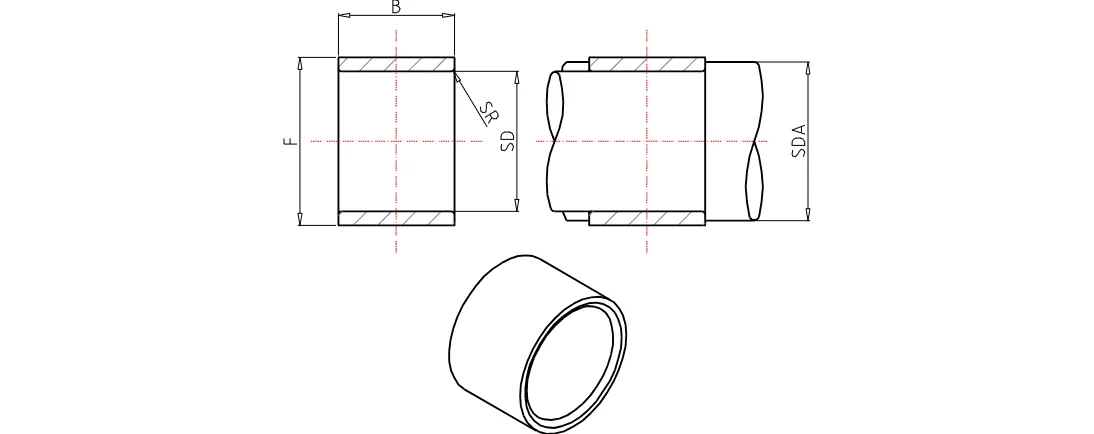

The supplied dimensional data identifies the inner ring with a shaft and inside diameter of 50 mm, an outer diameter of 55 mm, and a width of 35 mm. Additional listed values include an rs minimum of 0.30 mm, da minimum of 52.0 mm, da maximum of 54.0 mm, and a mass of 110.0 g.
What are the stated dimensions for the LRT505535?
- Shaft diameter: 50 mm
- Inside diameter: 50 mm
- Outer diameter: 55 mm
- Width: 35 mm
- rs min.: 0.30 mm
- da min.: 52.0 mm
- da max.: 54.0 mm
- Mass: 110.0 g
Assembly and Material Information
The product data lists the LRT505535 inner ring for assembly with TAF 556835. Its listed bearing material is high carbon chrome steel, while the detail title describes the item as high carbon steel. No additional compatibility, performance, or certification details are provided beyond the supplied data.
Which bearing is identified for use with this inner ring?
The LRT505535 is listed to assemble with TAF 556835. Confirm assembly suitability using the stated dimensions and the requirements of the intended bearing arrangement.
