IKO LRT505540

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW556840
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT505540

Order Number LRT505540
Shaft Dimaeter 50 mm
Inside Diamater 50 mm
Outer Diameter 55 mm
Width 40 mm
rs min. 0.30 mm
da min 52.0 mm
da max 54.0 mm
Assembled bearings RNAFW 556840
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 130.0 g

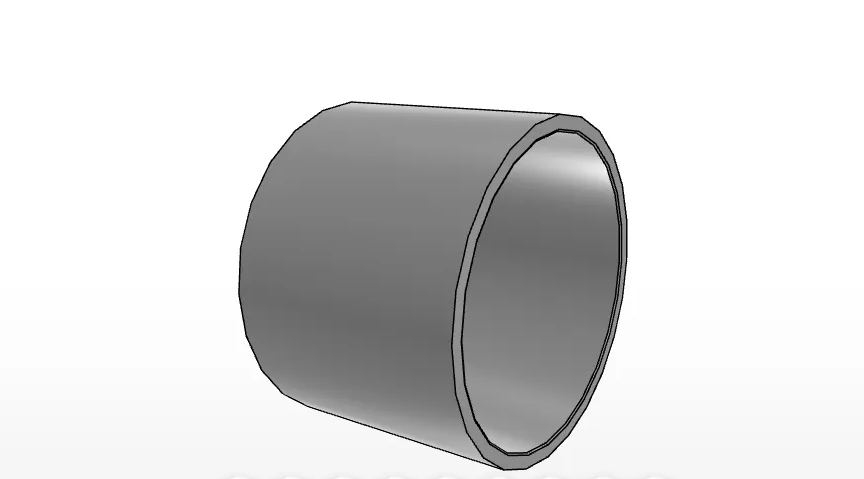

The IKO LRT505540 Is a Metric Inner Ring

The IKO LRT505540 belongs to the IKO Inner Rings series and is listed for assembly with RNAFW 556840. The product data identifies it as a metric, general-usage inner ring made from high carbon chrome steel.

What bearing type and brand are specified?

The model is an Inner Ring supplied under the IKO brand. Its category path is Brand > IKO > Inner Rings.

The LRT505540 Has Recorded Metric Dimensions

  • Shaft diameter: 50 mm
  • Inside diameter: 50 mm
  • Outer diameter: 55 mm
  • Width: 40 mm
  • rs min.: 0.30 mm
  • da min.: 52.0 mm
  • da max.: 54.0 mm

What assembly and mass information is provided?

The supplied data lists the assembled bearing as RNAFW 556840 and the mass as 130.0 g.

The Inner Ring Uses High Carbon Chrome Steel

The structured product data records the bearing material as High Carbon Chrome Steel, while the descriptive title also refers to high carbon steel. No additional material grade, finish, certification, or performance claim is provided.

What should be checked before selecting this inner ring?

Verify the listed 50 mm inside diameter, 55 mm outer diameter, 40 mm width, edge-limit dimensions, and intended assembly reference against the target bearing arrangement. Compatibility should be confirmed using the relevant equipment or bearing specification.
