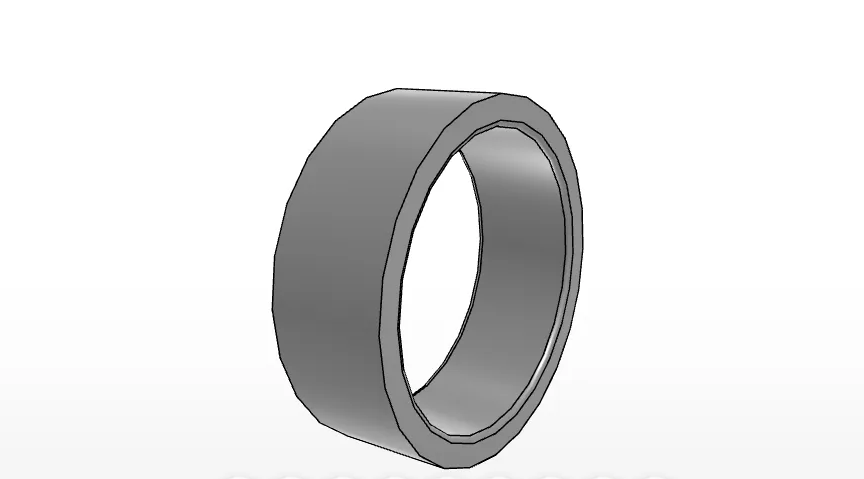

IKO LRT506020
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAF607820
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT506020
Shaft Dimaeter
50
mm
Inside Diamater
50
mm
Outer Diameter
60
mm
Width
20
mm
rs min.
1.00
mm
da min
55.0
mm
da max
59.0
mm
Assembled bearings
RNAF 607820
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
135.0
g
The IKO LRT506020 Is a Metric Inner Ring
What type of bearing component is the LRT506020?
The IKO LRT506020 is part of the Inner Rings product series and is classified within the brand path Brand > IKO > Inner Rings. It is described as a metric inner ring intended for general usage and for assembly with the RNAF607820 bearing.
- Order number: LRT506020
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner ring
The LRT506020 Uses High Carbon Chrome Steel Construction
What material information is supplied for this inner ring?
The product data lists the bearing material as high carbon chrome steel. The detail description also identifies the component as high carbon steel. No additional material grade, certification, or treatment information is provided in the supplied data.
- Listed bearing material: High carbon chrome steel
- Description reference: High carbon steel
- Usage: General usage, as stated in the product data
The LRT506020 Matches the RNAF607820 Assembly Dimensions
What dimensions and assembly details are provided?
The supplied data specifies the inner ring dimensions and matching assembly reference. These values can be checked against the mating shaft and RNAF607820 assembly before selection.
- Shaft diameter / inside diameter: 50 mm
- Outside diameter: 60 mm
- Width: 20 mm
- rs minimum: 1.00 mm
- da minimum: 55.0 mm
- da maximum: 59.0 mm
- Assembled bearing reference: RNAF 607820
- Mass: 135.0 g
