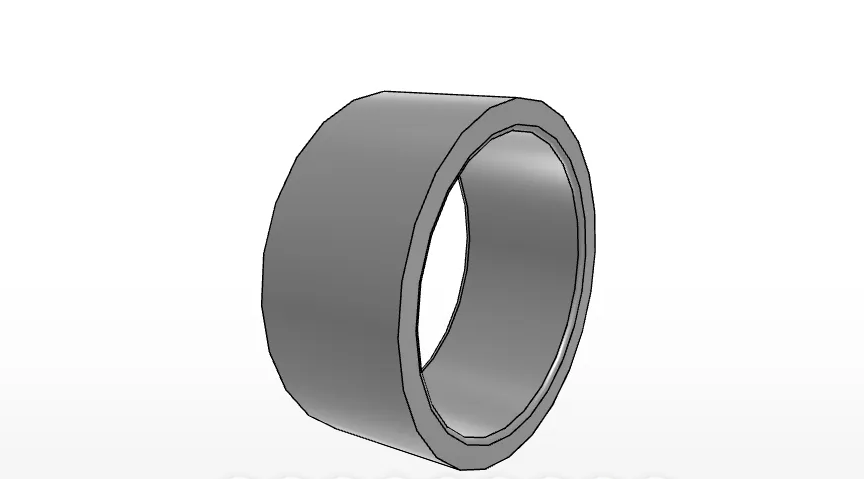

IKO LRT506025

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with NAX6040 and NBX6040
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT506025

Order Number LRT506025
Shaft Dimaeter 50 mm
Inside Diamater 50 mm
Outer Diameter 60 mm
Width 26 mm
rs min. 1.00 mm
da min 55.0 mm
da max 59.0 mm
Assembled bearings NAX 6040
Assembled bearings NBX 6040
Assembled bearings -
Assembled bearings -
Mass 165.0 g

IKO LRT506025 Inner Ring Overview

What is the IKO LRT506025?

The IKO LRT506025 is an Inner Rings series metric inner ring. The supplied product title identifies it for general usage and assembly with NAX6040 and NBX6040 bearings.

Stated Dimensions and Material Details

What dimensions and material are listed for this inner ring?

  • Shaft diameter: 50 mm
  • Inside diameter: 50 mm
  • Outer diameter: 60 mm
  • Width: 26 mm
  • rs minimum: 1.00 mm
  • da range: 55.0 mm minimum to 59.0 mm maximum
  • Material: high carbon chrome steel
  • Mass: 165.0 g

Assembly and Product Identification

Which assembled bearings and category information are specified?

The supplied data lists the LRT506025 for assembly with NAX 6040 and NBX 6040 bearings. Its product category path is Brand > IKO > Inner Rings, and the bearing type is listed as Inner Rings.
