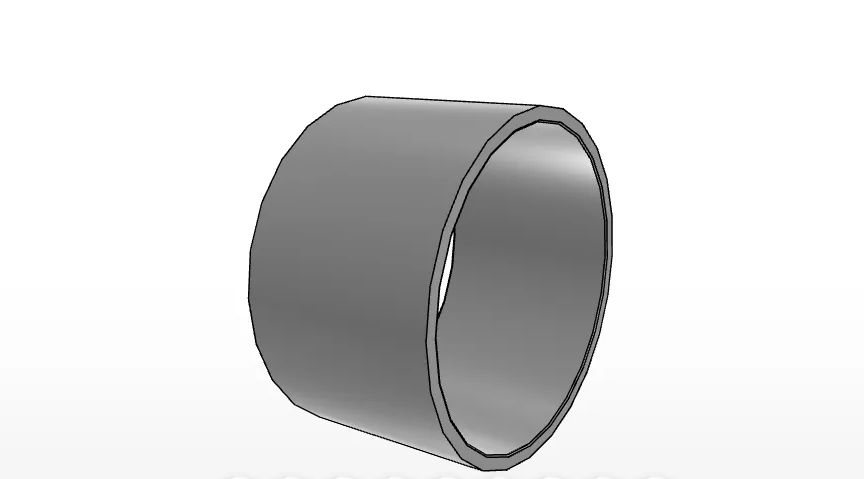

IKO LRT556035 Metric Inner Ring
What is the IKO LRT556035?
The LRT556035 is an IKO metric inner ring within the Inner Rings series. It is listed for assembly with TAF 607235 and is identified by order number LRT556035.
- Brand: IKO
- Product series: Inner Rings
- Bearing type: Inner Rings
- Category: Brand > IKO > Inner Rings
Dimension and Material Details
What dimensions and material are specified for the LRT556035?
The supplied product data lists the following measurements for this metric inner ring:
- Shaft diameter: 55 mm
- Inside diameter: 55 mm
- Outer diameter: 60 mm
- Width: 35 mm
- rs min.: 0.30 mm
- da min.: 57.0 mm
- da max.: 59.0 mm
The bearing material is listed as high carbon chrome steel; the title information also refers to high carbon steel. The listed mass is 120.0 g.
Assembly Reference for TAF 607235
Which assembled bearing is referenced with this inner ring?
The product data identifies TAF 607235 as the assembled bearing reference for the LRT556035 inner ring. Confirm assembly suitability using the stated bore, outside diameter, width, and related dimension data before selection.
- Verify the 55 mm inside diameter against the shaft requirement.
- Check the 60 mm outer diameter and 35 mm width against the mating assembly.
- Review the minimum chamfer and da values against the intended arrangement.
