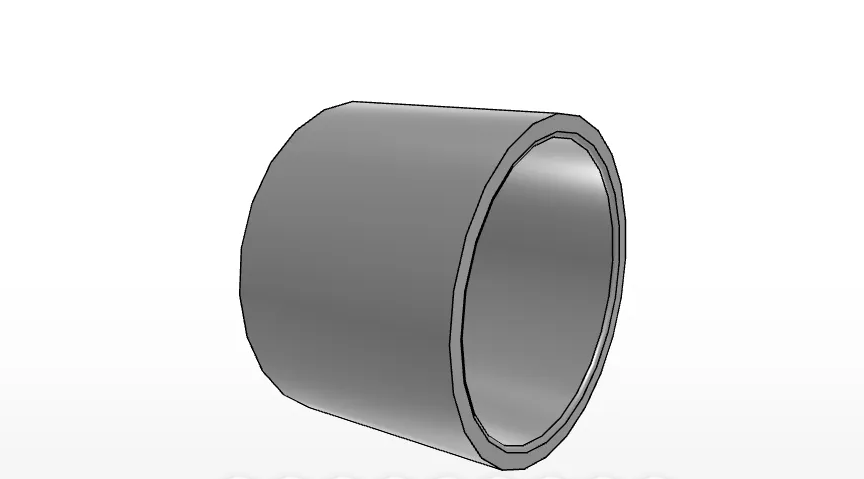

IKO LRT556345

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA6911
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT556345

Order Number LRT556345
Shaft Dimaeter 55 mm
Inside Diamater 55 mm
Outer Diameter 63 mm
Width 45 mm
rs min. 1.00 mm
da min 60.0 mm
da max 61.0 mm
Assembled bearings RNA 6911
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 255.0 g

The IKO LRT556345 Is a Metric Inner Ring

The IKO LRT556345 is part of the IKO Inner Rings series and is listed for general usage. It is identified as an inner ring intended for assembly with RNA 6911, based on the supplied product data.

What is the model and bearing type?

The order number and model are LRT556345, and the bearing type is Inner Rings. The product category path is Brand > IKO > Inner Rings.

The LRT556345 Has Stated Metric Dimensions

The supplied specifications list a shaft diameter and inside diameter of 55 mm, an outer diameter of 63 mm, and a width of 45 mm. Additional dimensional values include a minimum fillet radius of 1.00 mm, a minimum da value of 60.0 mm, and a maximum da value of 61.0 mm.

What dimensions and related assembly information are provided?

  • Shaft diameter: 55 mm
  • Inside diameter: 55 mm
  • Outer diameter: 63 mm
  • Width: 45 mm
  • rs minimum: 1.00 mm
  • da minimum: 60.0 mm
  • da maximum: 61.0 mm
  • Assembled bearing listing: RNA 6911

The IKO Inner Ring Uses the Listed Steel Material

The product data identifies the material as High Carbon Chrome Steel in the list specifications and describes it as High Carbon Steel in the title information. The listed mass is 255.0 g.

What material and mass details should be noted?

The LRT556345 is specified with a high-carbon steel description and a high carbon chrome steel bearing material listing. Its supplied mass is 255.0 g. No additional material grade, certification, performance rating, or availability detail is provided in the source data.
