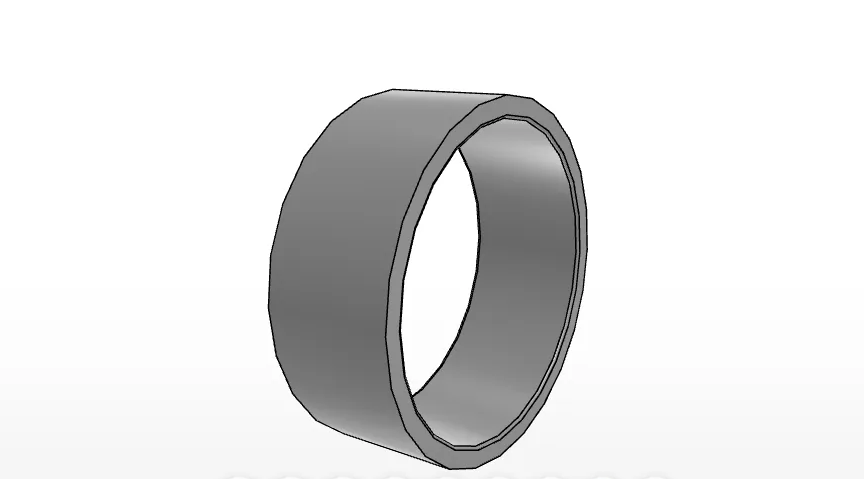

IKO LRT606825

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF688225
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT606825

Order Number LRT606825
Shaft Dimaeter 60 mm
Inside Diamater 60 mm
Outer Diameter 68 mm
Width 25 mm
rs min. 0.60 mm
da min 64.0 mm
da max 66.0 mm
Assembled bearings TAF 688225
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 150.0 g

IKO LRT606825 Inner Ring for Metric Bearing Arrangements

What is the LRT606825?

The LRT606825 is an IKO inner ring within the Inner Rings product series. It is listed as a metric inner ring for general usage and is intended to assemble with TAF 688225 bearings.

  • Brand: IKO
  • Series: Inner Rings
  • Bearing type: Inner Rings
  • Order number: LRT606825

LRT606825 Dimensions and Material Specification

What dimensions and material are listed for this inner ring?

The supplied product data identifies the inner ring as high carbon steel in the title information and as high carbon chrome steel in the bearing material field. Its stated dimensions are:

  • Shaft diameter: 60 mm
  • Inside diameter: 60 mm
  • Outside diameter: 68 mm
  • Width: 25 mm
  • rs minimum: 0.60 mm
  • da minimum: 64.0 mm
  • da maximum: 66.0 mm
  • Mass: 150.0 g

LRT606825 Assembly and Identification Details

Which assembled bearing is identified with the LRT606825?

The product data lists TAF 688225 as the assembled bearing for the LRT606825. Use the listed order number and dimensions when identifying or matching this IKO inner ring to the stated bearing assembly.

  1. Confirm the order number: LRT606825
  2. Verify the bore, outside diameter, and width: 60 mm x 68 mm x 25 mm
  3. Match it with the listed assembled bearing: TAF 688225
