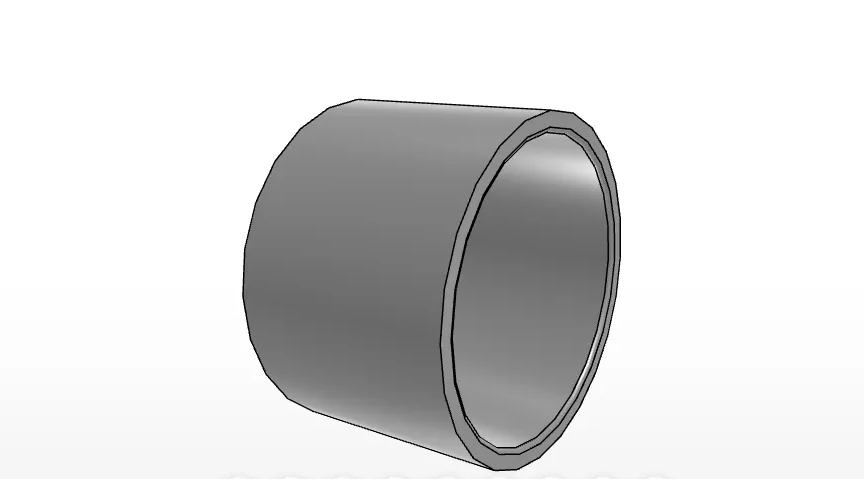

IKO LRT606845

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA6912
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT606845

Order Number LRT606845
Shaft Dimaeter 60 mm
Inside Diamater 60 mm
Outer Diameter 68 mm
Width 45 mm
rs min. 1.00 mm
da min 65.0 mm
da max 66.0 mm
Assembled bearings RNA 6912
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 275.0 g

IKO LRT606845 Inner Ring Specifications

What are the stated dimensions of the IKO LRT606845?

The IKO LRT606845 is a metric inner ring with a 60 mm inside diameter, 68 mm outer diameter, and 45 mm width. The supplied data also lists a minimum rs of 1.00 mm, a minimum da of 65.0 mm, and a maximum da of 66.0 mm.

  • Model: LRT606845
  • Brand: IKO
  • Series: Inner Rings
  • Bearing type: Inner ring
  • Mass: 275.0 g

LRT606845 Material and Series Information

What material and product family are listed for this inner ring?

The LRT606845 is listed under IKO Inner Rings and the supplied bearing material is high carbon chrome steel. The detail title also refers to the component as a metric inner ring for general usage.

  • Category path: Brand > IKO > Inner Rings
  • Material: High carbon chrome steel
  • Designation format: Metric
  • Usage description: General usage

LRT606845 Assembly Relationship

Which assembled bearing is identified for the LRT606845?

The product data identifies the LRT606845 for assembly with RNA 6912. Verify dimensional and assembly compatibility with the intended RNA 6912 bearing before selection or installation.

  1. Confirm the 60 mm shaft or inside-diameter requirement.
  2. Check the 68 mm outer diameter and 45 mm width against the mating assembly.
  3. Review the listed RNA 6912 assembly relationship.
