IKO LRT607030

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAF709030
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT607030

Order Number LRT607030
Shaft Dimaeter 60 mm
Inside Diamater 60 mm
Outer Diameter 70 mm
Width 30 mm
rs min. 1.50 mm
da min 68.0 mm
da max 68.5 mm
Assembled bearings RNAF 709030
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 240.0 g

IKO LRT607030 Metric Inner Ring

What is the IKO LRT607030?

The LRT607030 is an IKO Inner Ring from the Inner Rings series. It is listed as a metric inner ring for general usage and is designed to assemble with RNAF709030.

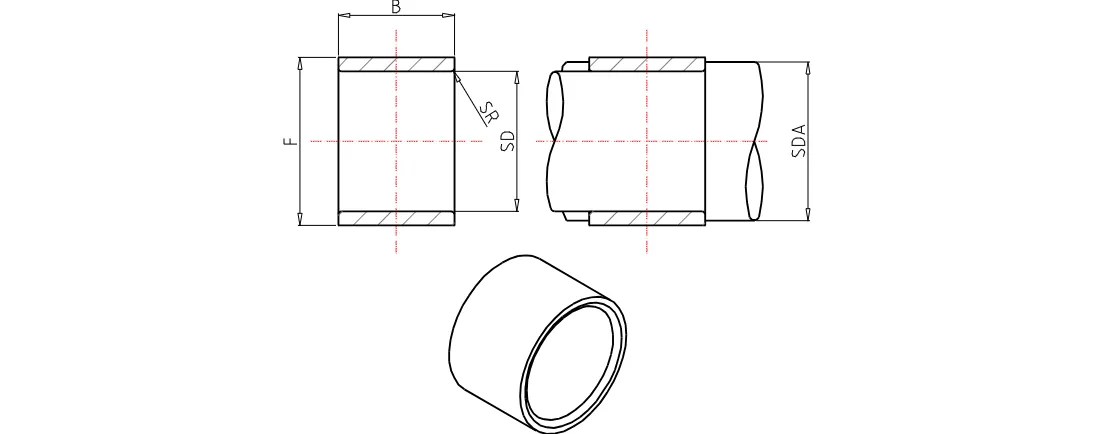

Stated Dimensions and Product Data

What dimensions and specifications are provided?

  • Shaft / inside diameter: 60 mm
  • Outer diameter: 70 mm
  • Width: 30 mm
  • rs min.: 1.50 mm
  • da min.: 68.0 mm
  • da max.: 68.5 mm
  • Mass: 240.0 g

Material and Series Identification

What material and category information is supplied?

The LRT607030 is categorized under Brand > IKO > Inner Rings. The supplied bearing type is Inner Rings, and the listed bearing material is High Carbon Chrome Steel.
