IKO LRT607045

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TR708945
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT607045

Order Number LRT607045
Shaft Dimaeter 60 mm
Inside Diamater 60 mm
Outer Diameter 70 mm
Width 46 mm
rs min. 1.00 mm
da min 65.0 mm
da max 68.0 mm
Assembled bearings TR 708945
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 355.0 g

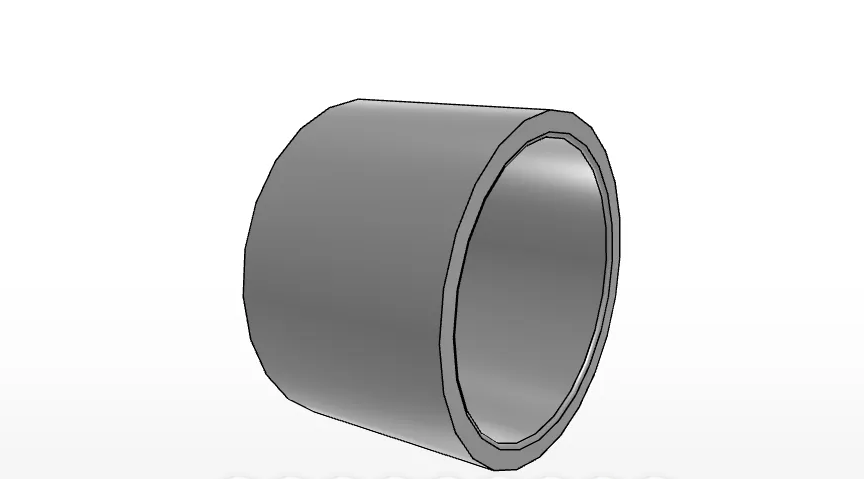

IKO LRT607045 Inner Ring for Metric Assemblies

The IKO LRT607045 is an inner ring in the Inner Rings product series. It is listed for assembly with TR708945 and is presented as a metric, general-usage inner ring.

What bearing type and brand is the LRT607045?

This component is an IKO inner ring, categorized under Brand > IKO > Inner Rings. Its listed bearing type is Inner Rings.

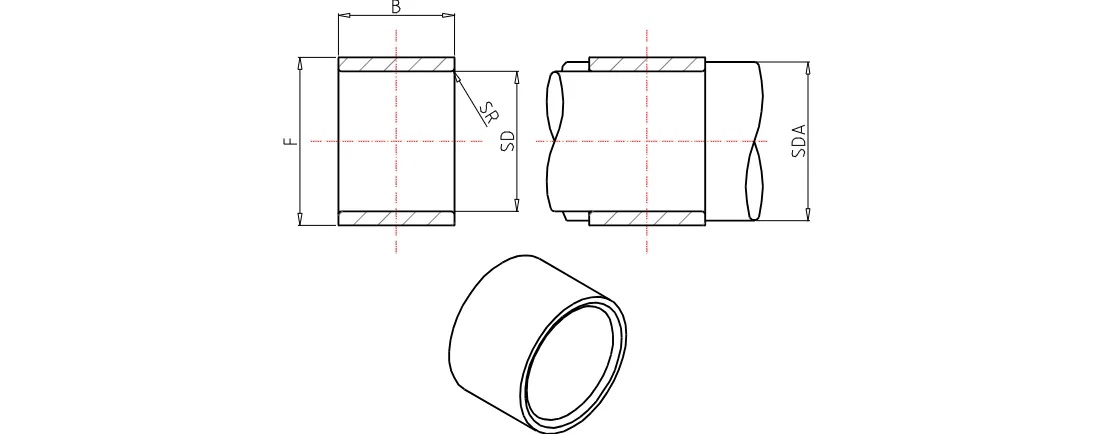

LRT607045 Dimensions and Material Specification

  • Shaft diameter: 60 mm
  • Inside diameter: 60 mm
  • Outer diameter: 70 mm
  • Width: 46 mm
  • rs minimum: 1.00 mm
  • da minimum: 65.0 mm
  • da maximum: 68.0 mm
  • Mass: 355.0 g
  • Material: High carbon chrome steel; the product introduction also references high carbon steel

What are the stated size details of the LRT607045?

The supplied data identifies a 60 mm inside diameter, 70 mm outer diameter, and 46 mm width. The listed mass is 355.0 g.

IKO LRT607045 Compatibility Information

The product data lists the LRT607045 inner ring for use with the assembled bearing designation TR 708945. Compatibility should be checked against the required assembly dimensions and related component specifications.

Which assembled bearing is listed for this inner ring?

The supplied specification lists TR 708945 as the assembled bearing for the IKO LRT607045. Additional assembly entries are blank in the source data.
