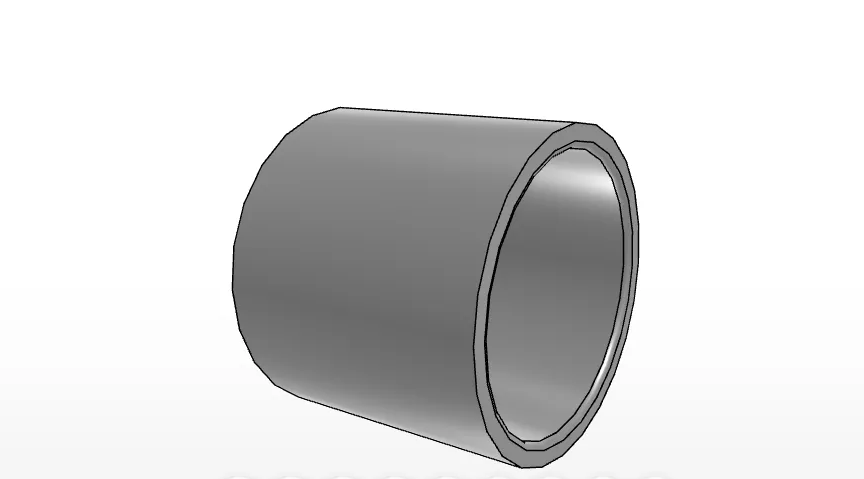

IKO LRT607060

Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW709060
(BRAND):IKO
(Availability):In Stock

Detailed data of

LRT607060

Order Number LRT607060
Shaft Dimaeter 60 mm
Inside Diamater 60 mm
Outer Diameter 70 mm
Width 60 mm
rs min. 1.50 mm
da min 68.0 mm
da max 68.5 mm
Assembled bearings RNAFW 709060
Assembled bearings -
Assembled bearings -
Assembled bearings -
Mass 480.0 g

IKO LRT607060 Inner Ring Overview

The IKO LRT607060 is a metric inner ring in the IKO Inner Rings product series. The supplied data identifies it as an inner ring for general usage, made from high carbon chrome steel, and intended for assembly with RNAFW709060.

What are the basic identifying details for the LRT607060?

The order number is LRT607060, the brand is IKO, and the bearing type is listed as Inner Rings. Its product category path is Brand > IKO > Inner Rings.

IKO LRT607060 Dimensions and Construction

  • Shaft diameter: 60 mm
  • Inside diameter: 60 mm
  • Outer diameter: 70 mm
  • Width: 60 mm
  • rs minimum: 1.50 mm
  • da minimum: 68.0 mm
  • da maximum: 68.5 mm
  • Mass: 480.0 g

What material is specified for the LRT607060?

The supplied product data lists the bearing material as high carbon chrome steel. No additional material grade, coating, or certification is specified in the available data.

IKO LRT607060 Assembly Information

The LRT607060 is identified as an inner ring to assemble with RNAFW709060. Assembly or compatibility should be checked against the matching bearing and required installation dimensions.

Which assembled bearing is listed for this inner ring?

The product data lists RNAFW 709060 as the assembled bearing. The listed 68.0 mm minimum and 68.5 mm maximum da values and 1.50 mm minimum rs value can be reviewed as part of dimensional verification.
