IKO LRTZ152014
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4902UU
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRTZ152014
Shaft Dimaeter
15
mm
Inside Diamater
15
mm
Outer Diameter
20
mm
Width
14
mm
rs min.
0.30
mm
da min
17.0
mm
da max
19.0
mm
Assembled bearings
RNA 4902UU
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
14.5
g

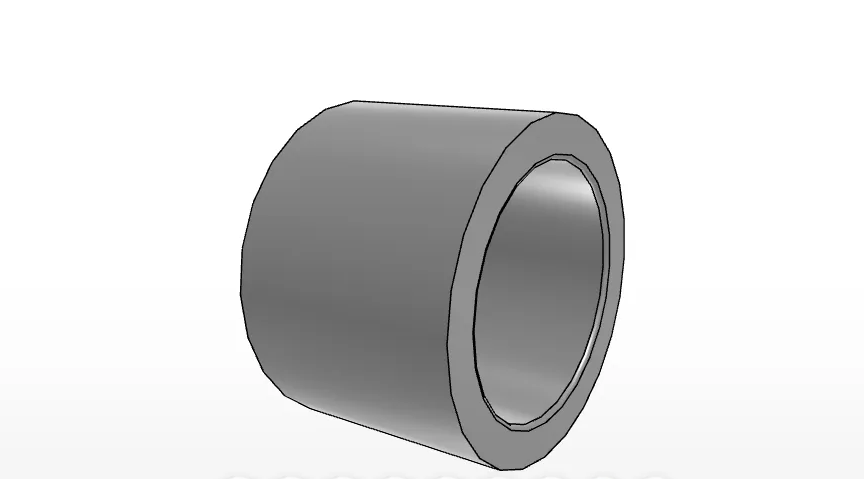

IKO LRTZ152014 Metric Inner Ring
What is the LRTZ152014?
The LRTZ152014 is an IKO Inner Rings series component listed for metric general usage. It is made from high carbon chrome steel, and the product title identifies it for assembly with RNA4902UU.
Dimensioned Inner Ring Specifications
What dimensions are provided for this inner ring?
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 20 mm
- Width: 14 mm
- rs minimum: 0.30 mm
- da minimum: 17.0 mm
- da maximum: 19.0 mm
- Mass: 14.5 g
Assembly and Identification Details
How is this inner ring identified and matched?
The supplied order number is LRTZ152014, the brand is IKO, and the bearing type is Inner Rings. The listed assembled bearing reference is RNA 4902UU; compatibility should be checked against the required assembly dimensions before selection.
