IKO LRTZ283230
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with GTR324530

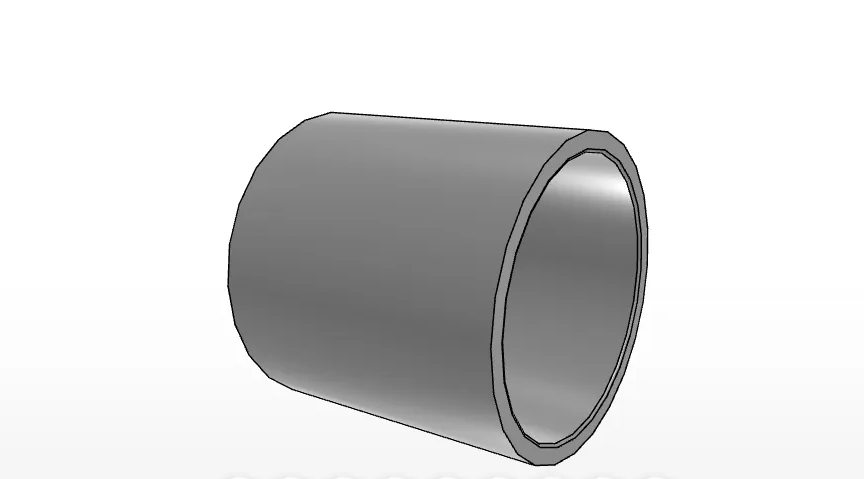

IKO LRTZ283230 Inner Ring for Metric Bearing Assembly
The IKO LRTZ283230 is an inner ring in the IKO Inner Rings series. It is listed for assembly with GTR324530 and is presented under the category path Brand > IKO > Inner Rings.
What is the LRTZ283230?
The LRTZ283230 is a metric inner ring identified by order number LRTZ283230. The product data identifies its bearing type as Inner Rings and its brand as IKO.

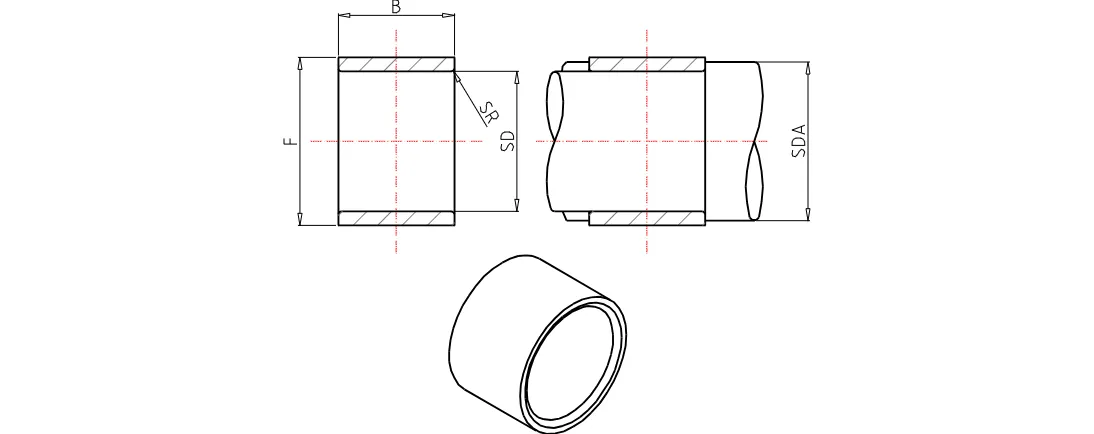

Dimension and Material Details for the LRTZ283230
- Shaft diameter: 28 mm
- Inside diameter: 28 mm
- Outer diameter: 32 mm
- Width: 31 mm
- rs min.: 0.30 mm
- da min.: 30.0 mm
- da max.: 31.0 mm
- Material: High carbon chrome steel
- Mass: 43.0 g
What material is specified for this inner ring?
The supplied list data specifies high carbon chrome steel as the bearing material. The product title also describes the inner ring as high carbon steel for general usage.
LRTZ283230 Compatibility and Product Identification
The product data links the LRTZ283230 inner ring to the assembled bearing designation GTR324530. Use the listed order number, dimensions, and assembly reference to confirm the part against the required configuration.
Which assembled bearing is listed for the LRTZ283230?
The LRTZ283230 is listed to assemble with GTR324530. No additional application, load, certification, stock, or warranty details are provided in the supplied data.
