IKO LRTZ324021
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA49/32UU
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRTZ324021
Shaft Dimaeter
32
mm
Inside Diamater
32
mm
Outer Diameter
40
mm
Width
21
mm
rs min.
0.60
mm
da min
36.0
mm
da max
39.0
mm
Assembled bearings
RNA 49/32UU
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
72.5
g

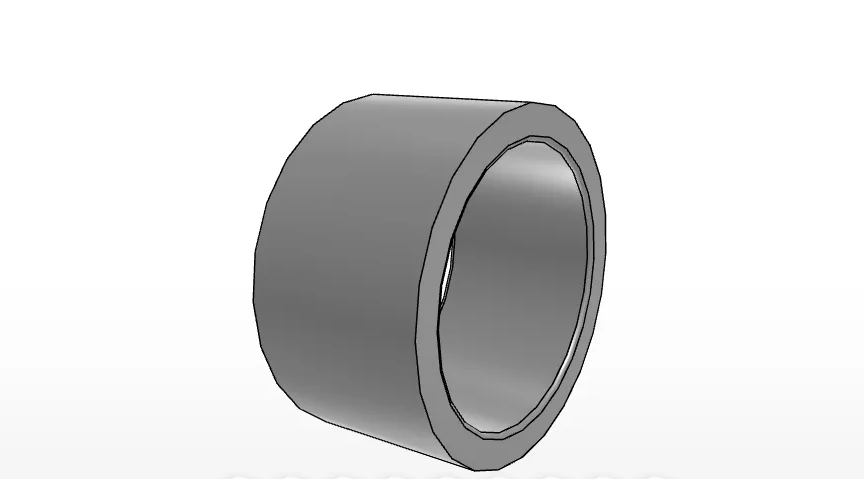

The IKO LRTZ324021 Is a Metric Inner Ring
What type of component is the LRTZ324021?
The LRTZ324021 is an IKO inner ring in the Inner Rings product series. It is listed under the category path Brand > IKO > Inner Rings and is identified for metric, general usage.
The LRTZ324021 Has Defined Metric Dimensions
What dimensions and related values are provided for this inner ring?
- Shaft diameter / inside diameter: 32 mm
- Outer diameter: 40 mm
- Width: 21 mm
- rs minimum: 0.60 mm
- da minimum: 36.0 mm
- da maximum: 39.0 mm
- Mass: 72.5 g
The IKO Inner Ring Uses High Carbon Chrome Steel
What material and assembly information is supplied?
The supplied product data identifies the bearing material as high carbon chrome steel, also described in the title information as high carbon steel. The inner ring is referenced for assembly with RNA49/32UU, with the supplied data listing the assembled bearing as RNA 49/32UU.
