IKO LRTZ404530
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with GTR455930
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRTZ404530
Shaft Dimaeter
40
mm
Inside Diamater
40
mm
Outer Diameter
45
mm
Width
31
mm
rs min.
0.60
mm
da min
44.0
mm
da max
44.5
mm
Assembled bearings
GTR 455930
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
77.0
g
IKO LRTZ404530 Inner Ring Introduction
What is the IKO LRTZ404530?
The IKO LRTZ404530 is a metric inner ring in the IKO Inner Rings product series. It is listed for general usage and is intended to assemble with the GTR455930 bearing.

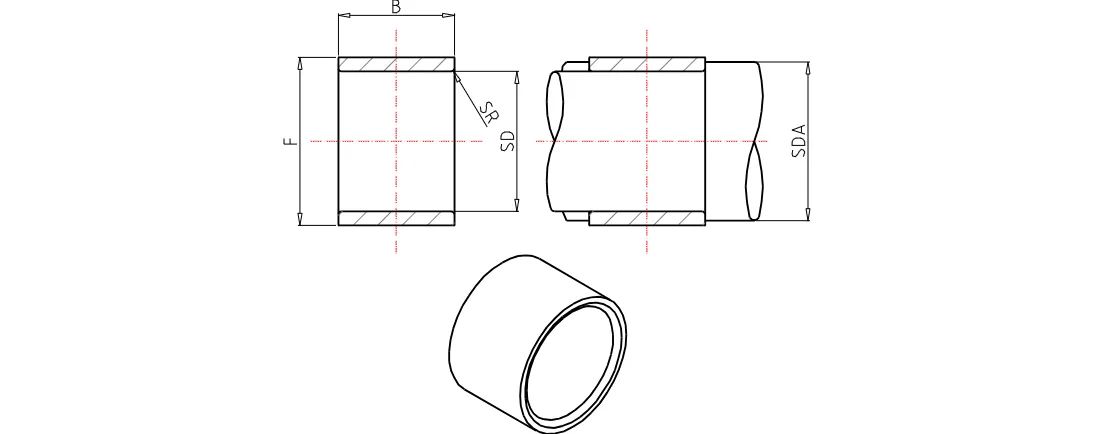

Specified Dimensions and Material
What dimensions and material are provided for this inner ring?
The supplied product data identifies the following specifications:
- Shaft diameter: 40 mm
- Inside diameter: 40 mm
- Outer diameter: 45 mm
- Width: 31 mm
- rs minimum: 0.60 mm
- da minimum: 44.0 mm
- da maximum: 44.5 mm
- Material: High carbon chrome steel, also listed as high carbon steel
Assembly and Product Reference Details
What assembly and reference information should be noted?
The LRTZ404530 is associated with the assembled bearing GTR455930. The listed order number is LRTZ404530, and the stated mass is 77.0 g.
- Confirm the mating part against the GTR455930 assembly reference.
- Review the listed shaft, bore, outside diameter, and width values before selection.
- Use the supplied chamfer and da values as part of dimensional checking.
This content is based only on the supplied product data.
