IKO LRTZ404823
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4908UU
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRTZ404823
Shaft Dimaeter
40
mm
Inside Diamater
40
mm
Outer Diameter
48
mm
Width
23
mm
rs min.
0.60
mm
da min
44.0
mm
da max
47.0
mm
Assembled bearings
RNA 4908UU
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
95.0
g

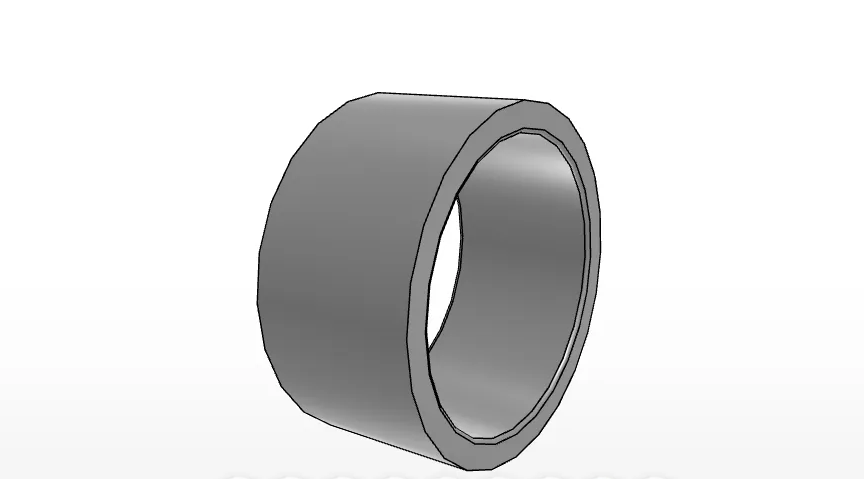

IKO LRTZ404823 Inner Ring for Metric Assembly
What is the LRTZ404823?
The LRTZ404823 is an IKO Inner Rings series metric inner ring. It is listed for assembly with RNA4908UU and is identified by order number LRTZ404823.
Dimension and Material Details
What dimensions and material are specified?
- Shaft diameter: 40 mm
- Inside diameter: 40 mm
- Outer diameter: 48 mm
- Width: 23 mm
- rs minimum: 0.60 mm
- da minimum: 44.0 mm
- da maximum: 47.0 mm
- Material: high carbon chrome steel; the detailed description also identifies it as high carbon steel
Product Identification and Reference Data
What additional reference information is provided?
- Brand: IKO
- Series: Inner Rings
- Category path: Brand > IKO > Inner Rings
- Bearing type: Inner Rings
- Assembled bearing reference: RNA 4908UU
- Mass: 95.0 g
