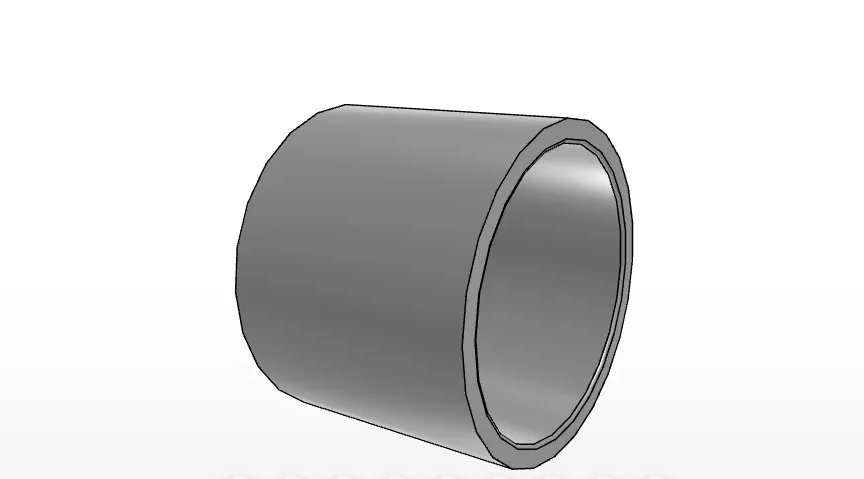

IKO LRTZ455241
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA6909UU
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRTZ455241
Shaft Dimaeter
45
mm
Inside Diamater
45
mm
Outer Diameter
52
mm
Width
41
mm
rs min.
0.60
mm
da min
49.0
mm
da max
51.0
mm
Assembled bearings
RNA 6909UU
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
170.0
g
IKO LRTZ455241 Metric Inner Ring Introduction
What type of bearing component is the LRTZ455241?
The LRTZ455241 is an IKO inner ring in the Inner Rings product series. It is a metric component identified for assembly with RNA 6909UU bearings.
- Brand: IKO
- Series: Inner Rings
- Category: Brand > IKO > Inner Rings
- Bearing type: Inner Rings
LRTZ455241 Dimensions and Material Details
What dimensions and material are listed for this inner ring?
The supplied product data lists the LRTZ455241 as a metric inner ring made from high carbon steel, with the list data also identifying the bearing material as High Carbon Chrome Steel. Its recorded dimensions and edge-related values are:
- Shaft diameter: 45 mm
- Inside diameter: 45 mm
- Outer diameter: 52 mm
- Width: 41 mm
- rs minimum: 0.60 mm
- da minimum: 49.0 mm
- da maximum: 51.0 mm
Assembly and Product Identification for LRTZ455241
Which assembly and mass information should be reviewed?
The product information identifies the LRTZ455241 for assembly with RNA 6909UU, also shown in the data as RNA6909UU. The listed mass is 170.0 g. Confirm the order number and required bearing compatibility before selection.
- Order number: LRTZ455241
- Assembled bearing: RNA 6909UU
- Mass: 170.0 g
- Usage description: General usage
