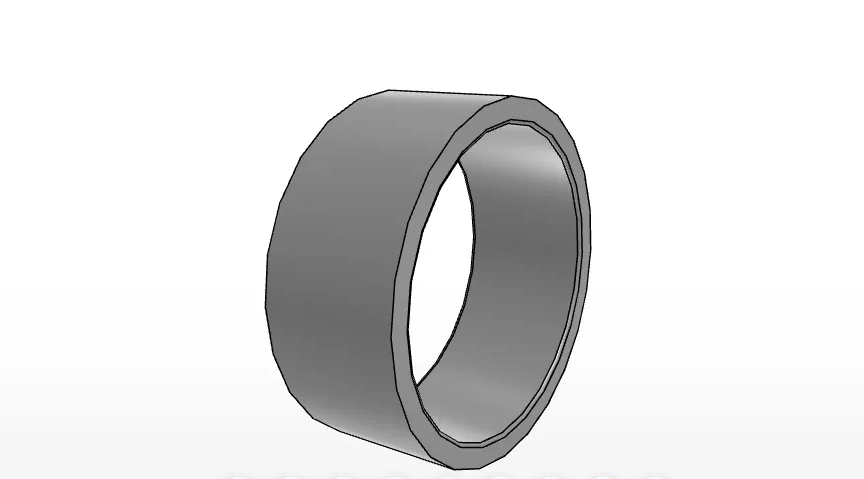

IKO LRTZ505823
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4910UU
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRTZ505823
Shaft Dimaeter
50
mm
Inside Diamater
50
mm
Outer Diameter
58
mm
Width
23
mm
rs min.
0.60
mm
da min
54.0
mm
da max
57.0
mm
Assembled bearings
RNA 4910UU
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
118.0
g
The IKO LRTZ505823 Is a Metric Inner Ring
What is the IKO LRTZ505823?
The LRTZ505823 is an IKO inner ring from the Inner Rings product series. It is listed for general metric usage and is identified for assembly with RNA4910UU bearings.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner ring
- Order number: LRTZ505823
The Inner Ring Provides the Stated Metric Dimensions
What dimensions are provided for the LRTZ505823?
The supplied product data lists the following measurements for this inner ring:
- Shaft diameter: 50 mm
- Inside diameter: 50 mm
- Outer diameter: 58 mm
- Width: 23 mm
- rs minimum: 0.60 mm
- da minimum: 54.0 mm
- da maximum: 57.0 mm
- Mass: 118.0 g
The Ring Uses High Carbon Chrome Steel and Matches RNA4910UU
What material and assembly information is available?
The product data identifies the material as high carbon chrome steel, also described in the detailed title as high carbon steel. The listed assembled bearing is RNA4910UU. Compatibility should be checked against the intended bearing arrangement using these supplied specifications.
- Confirm the 50 mm inside diameter matches the shaft requirement.
- Confirm the 58 mm outer diameter and 23 mm width match the assembly.
- Verify suitability for use with RNA4910UU.
