IKO NART10VUUR
Roller Follower, Metric, Non Separable Type, Full Complement, High Carbon Chrome Steel, Oil Hole, Sealed, Crowned
(BRAND)：IKO
(Availability)：In Stock
Order Number
NART10VUUR
Shaft Diameter
10
mm
Outer Diameter
30
mm
Width of innerring
15
mm
Width
14
mm
Diameter
23.5
mm
Basic dynamic load rating
15600
N
Basic static load rating
18100
N
Max.Allowable load
17500
N
Mass
66.5
g
NART10VUUR Metric Roller Follower by IKO
What is the NART10VUUR?
The NART10VUUR is an IKO Roller Follower from the Roller Followers series. It is a metric, non-separable, full-complement roller follower made of high carbon chrome steel, with a sealed design, oil hole, and crowned outer profile.
- Brand: IKO
- Series: Roller Followers
- Order Number: NART10VUUR
- Category: Brand > IKO > Roller Followers

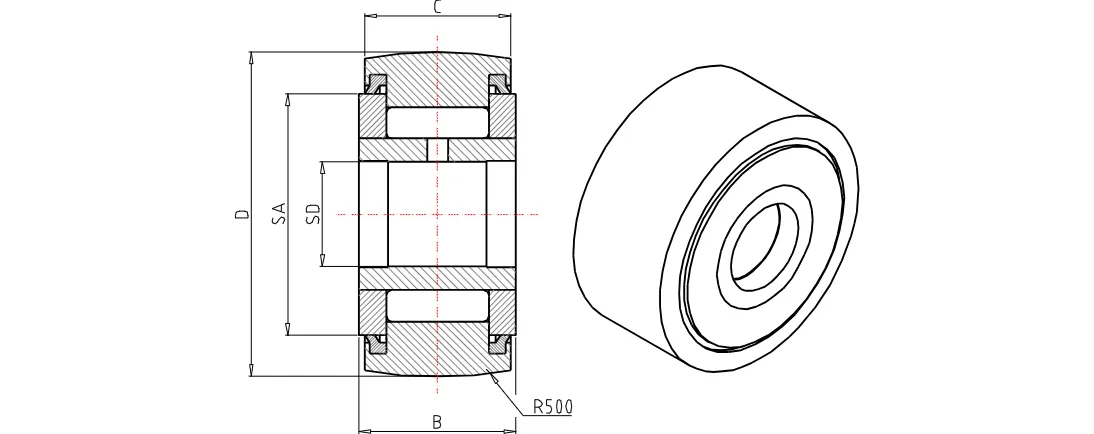

NART10VUUR Dimensions and Product Specifications
What dimensions and ratings are listed for this bearing?
The supplied product data lists the following specifications for the NART10VUUR roller follower:
- Shaft Diameter: 10 mm
- Outer Diameter: 30 mm
- Width of Inner Ring: 15 mm
- Width: 14 mm
- Diameter: 23.5 mm
- Basic Dynamic Load Rating: 15,600 N
- Basic Static Load Rating: 18,100 N
- Maximum Allowable Load: 17,500 N
- Mass: 66.5 g
NART10VUUR Construction Features
What construction details are provided in the product data?
The NART10VUUR is specified as a roller follower with a full complement internal structure and high carbon chrome steel bearing material. The product description also identifies it as non-separable, sealed, crowned, and equipped with an oil hole.
- Bearing Type: Roller Followers
- Bearing Material: High Carbon Chrome Steel
- Internal Structure: Full Complement
- Design Features: Non-separable type, sealed, oil hole, crowned
