IKO NART15FR
Roller Follower, Metric, Non Separable Type, Caged, Stainless Steel, Oil Hole, Open, Crowned

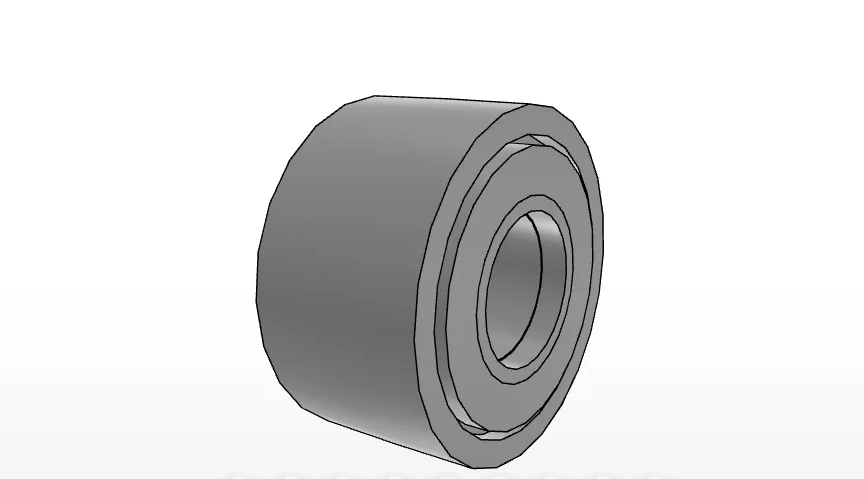

NART15FR IKO Roller Follower Overview
The NART15FR is an IKO Roller Followers series unit listed in the brand category path Brand > IKO > Roller Followers. The supplied data identifies it as a metric, non-separable, caged, open roller follower made from stainless steel, with an oil hole and a crowned outer running surface.
What is the NART15FR?
It is a roller follower bearing with order number NART15FR, manufactured by IKO. Its bearing type is roller follower, material is stainless steel, and internal structure is cage type.

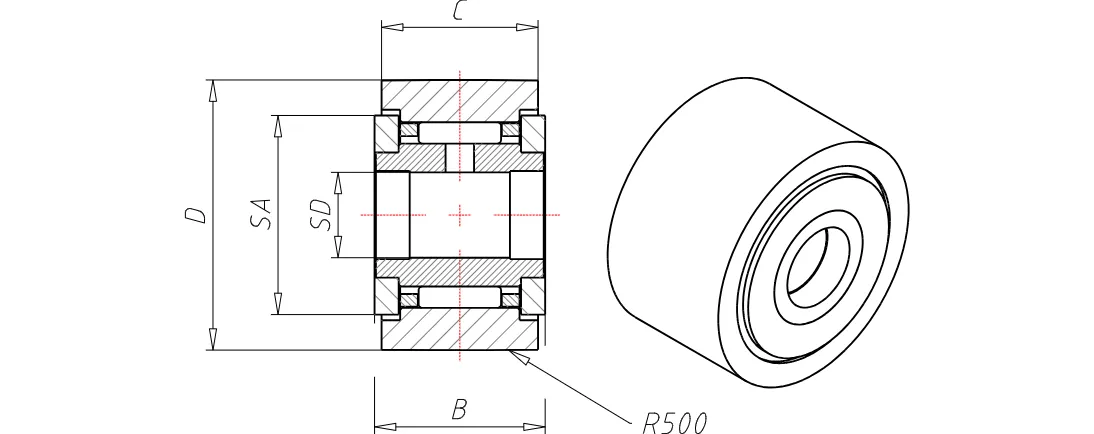

NART15FR Dimensions and Weight
The product data lists the following principal dimensions for the NART15FR:
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 35 mm
- Width: 18 mm
- Width of inner ring: 19 mm
- Diameter: 27.5 mm
- Mass: 99.0 g
What sizes should be used for selection or comparison?
Use the listed 15 mm inside diameter, 35 mm outer diameter, 18 mm width, 19 mm inner-ring width, and 27.5 mm diameter values. These dimensions are provided as supplied product data and should be checked against the mating arrangement before use.
NART15FR Load Ratings and Construction
The NART15FR has a caged internal structure and stainless steel construction. The supplied load data includes a basic dynamic load rating of 9,620 N, a basic static load rating of 14,700 N, and a maximum allowable load of 14,700 N.
What construction and load details are recorded for this bearing?
The bearing is recorded as metric, non-separable, caged, stainless steel, open, crowned, and equipped with an oil hole. Its listed basic dynamic load rating is 9,620 N, while its basic static load rating and maximum allowable load are both 14,700 N.
