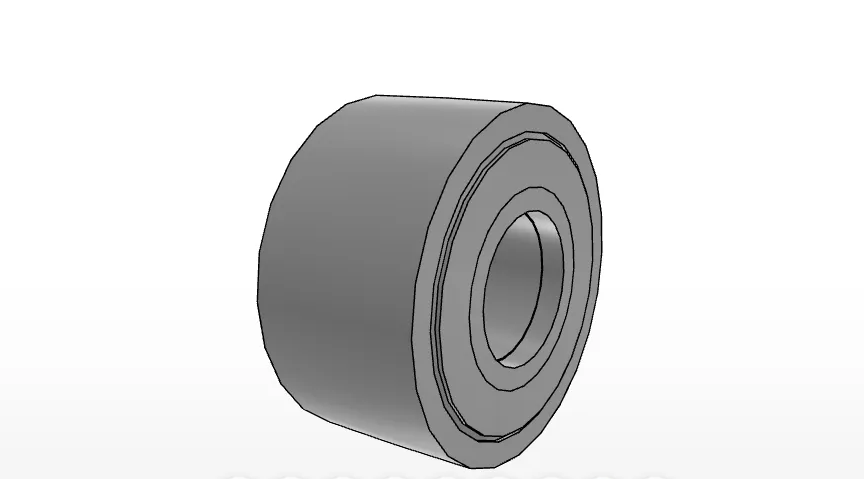

IKO NART17VUUR
Roller Follower, Metric, Non Separable Type, Full Complement, High Carbon Chrome Steel, Oil Hole, Sealed, Crowned
(BRAND)：IKO
(Availability)：In Stock
Order Number
NART17VUUR
Shaft Diameter
17
mm
Outer Diameter
40
mm
Width of innerring
21
mm
Width
20
mm
Diameter
32.5
mm
Basic dynamic load rating
32000
N
Basic static load rating
46300
N
Max.Allowable load
33100
N
Mass
155.0
g
The NART17VUUR Is an IKO Metric Roller Follower
What type of bearing is the NART17VUUR?
The NART17VUUR is an IKO Roller Follower from the Roller Followers series. It is described as a metric, non-separable, full complement roller follower with a crowned outer running surface.
- Brand: IKO
- Series: Roller Followers
- Bearing type: Roller Followers
- Internal structure: Full complement
The NART17VUUR Uses High Carbon Chrome Steel Construction
What material and design features are specified for this bearing?
The listed bearing material is high carbon chrome steel. Product data also identifies the NART17VUUR as sealed and equipped with an oil hole. The description specifies a non-separable, crowned design.
- Material: High carbon chrome steel
- Configuration: Non-separable, full complement
- Features: Oil hole, sealed, crowned
The NART17VUUR Has Listed Metric Dimensions and Load Ratings
What measurements and load values are provided for the NART17VUUR?
The supplied product data lists the following dimensions, mass, and load ratings. These values should be checked against the installation requirements before selection.
- Shaft diameter: 17 mm
- Outer diameter: 40 mm
- Width of inner ring: 21 mm
- Width: 20 mm
- Diameter: 32.5 mm
- Basic dynamic load rating: 32,000 N
- Basic static load rating: 46,300 N
- Maximum allowable load: 33,100 N
- Mass: 155.0 g
