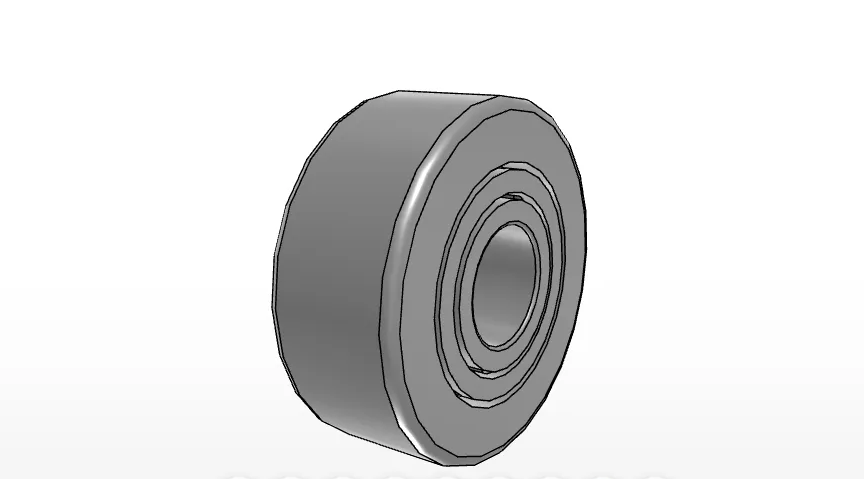

IKO NAST10
Roller Follower, Metric, Separable Type, Caged, High Carbon Chrome Steel, Open, Cylindrical
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAST10
Shaft diameter
10
mm
Inside diameter
10
mm
Outer Diameter
30
mm
Width of innerring
12
mm
Width
11.8
mm
rs min.
1.0
mm
r1s min
0.3
mm
Inscribed circle diameter
14
mm
Basic dynamic load rating
9790
N
Basic static load rating
9680
N
Type of Inner Ring
LRT 101412S
Mass
49.5
g
