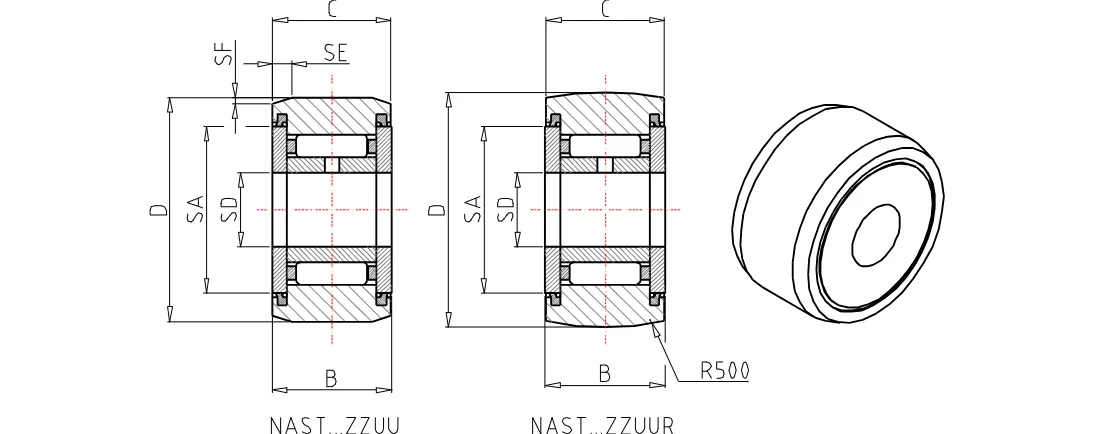

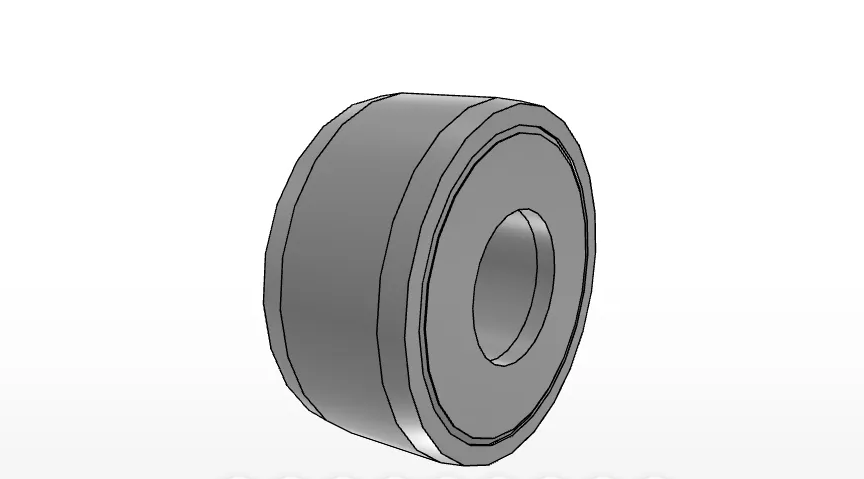

IKO NAST15ZZUU
Roller Follower, Metric, Separable Type, Caged, High Carbon Chrome Steel, Oil Hole, Sealed, Cylindrical
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAST15ZZUU
Shaft diameter
15
mm
Inside diameter
15
mm
Outer Diameter
35
mm
Width
16
mm
Width
15.8
mm
Diameter
29.0
mm
Chamfer
2.5
mm
Chamfer
0.8
mm
Basic dynamic load diameter
12400
mm
Basic static load rating
14300
mm
Mass
83.0
g
