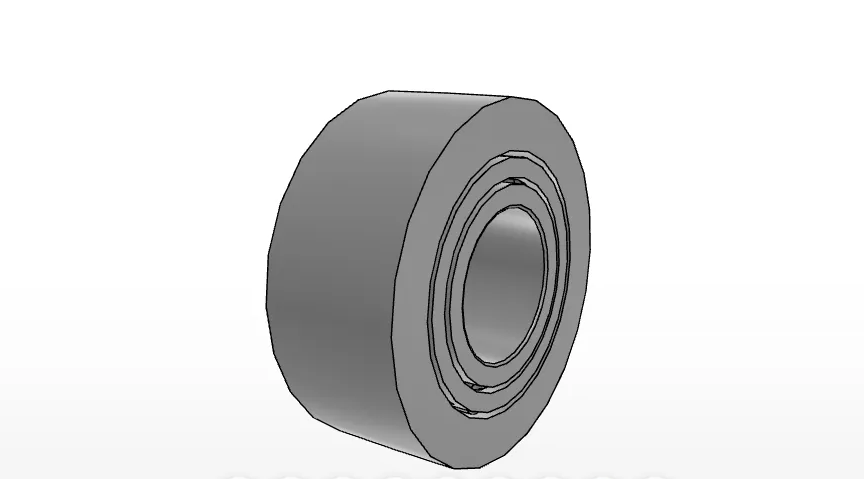

IKO NAST17R
Roller Follower, Metric, Separable Type, Caged, High Carbon Chrome Steel, Open, Crowned
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAST17R
Shaft diameter
17
mm
Inside diameter
17
mm
Outer Diameter
40
mm
Width of innerring
16
mm
Width
15.8
mm
rs min.
0.0
mm
r1s min
0.3
mm
Inscribed circle diameter
22
mm
Basic dynamic load rating
17600
N
Basic static load rating
20900
N
Type of Inner Ring
LRT 172216S
Mass
109.0
g
