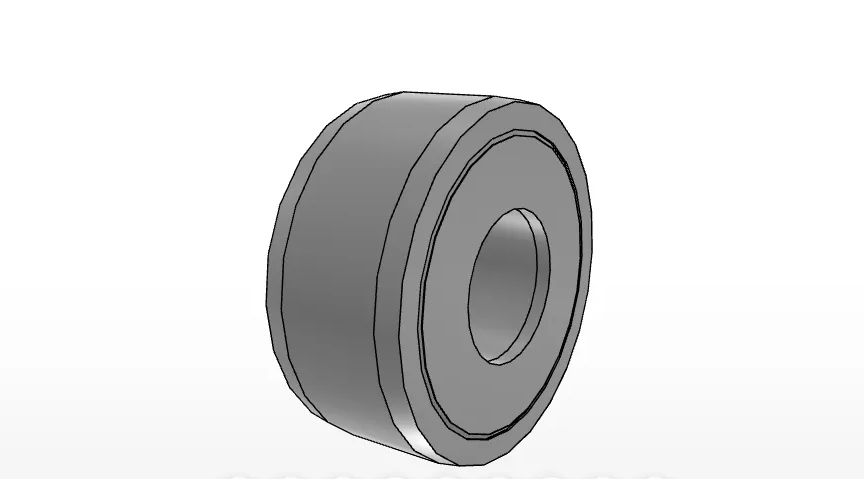

IKO NAST20ZZUU
Roller Follower, Metric, Separable Type, Caged, High Carbon Chrome Steel, Oil Hole, Sealed, Cylindrical
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAST20ZZUU
Shaft diameter
20
mm
Inside diameter
20
mm
Outer Diameter
47
mm
Width
20
mm
Width
19.8
mm
Diameter
38.0
mm
Chamfer
3.0
mm
Chamfer
1.0
mm
Basic dynamic load diameter
19400
mm
Basic static load rating
24500
mm
Mass
195.0
g
