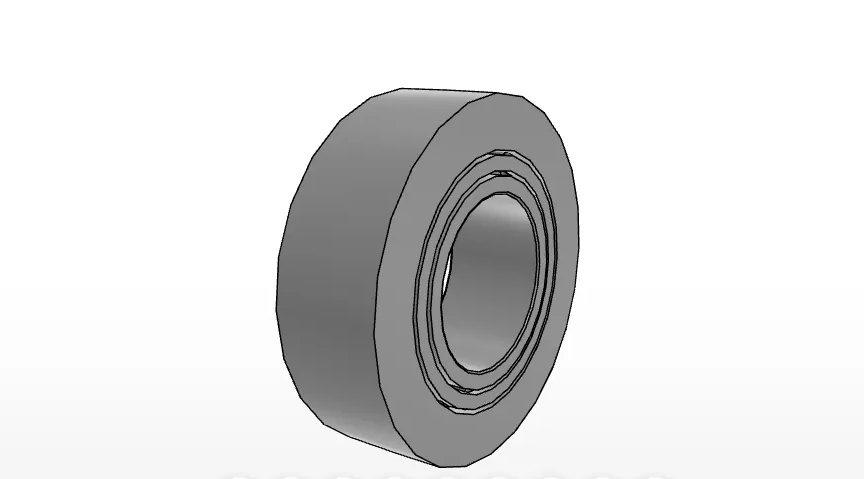

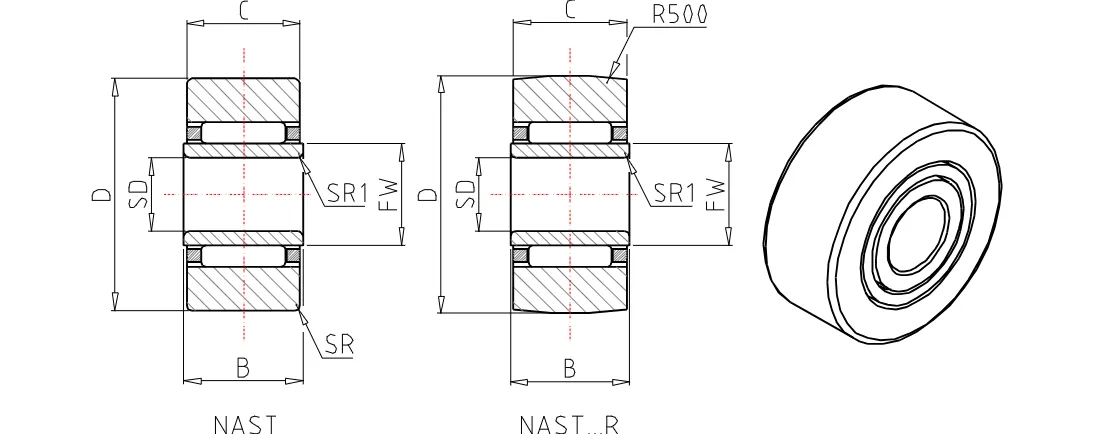

IKO NAST25R
Roller Follower, Metric, Separable Type, Caged, High Carbon Chrome Steel, Open, Crowned
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAST25R
Shaft diameter
25
mm
Inside diameter
25
mm
Outer Diameter
52
mm
Width of innerring
16
mm
Width
15.8
mm
rs min.
0.0
mm
r1s min
0.3
mm
Inscribed circle diameter
30
mm
Basic dynamic load rating
20800
N
Basic static load rating
28400
N
Type of Inner Ring
LRT 253016S
Mass
180.0
g
