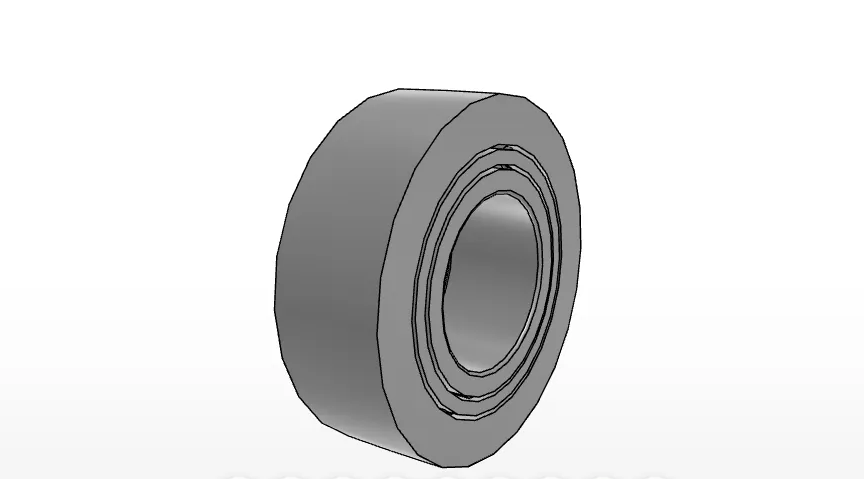

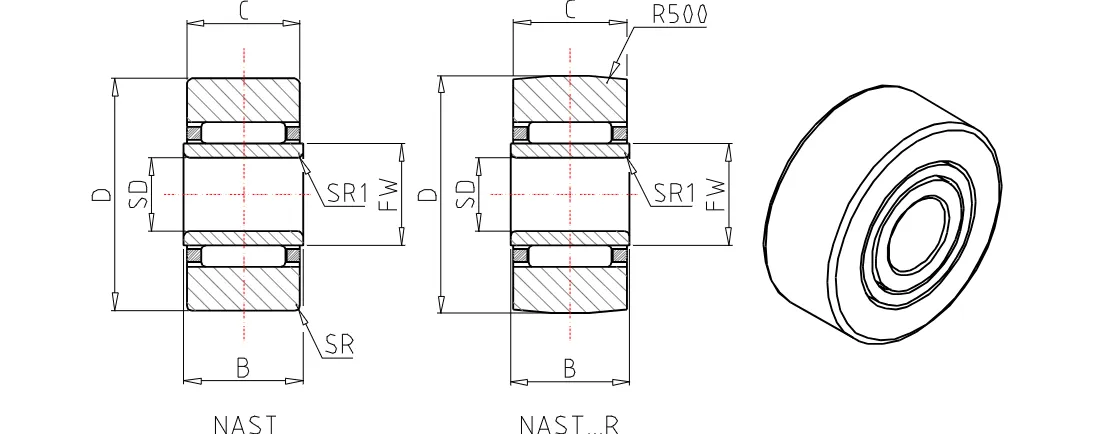

IKO NAST30R
Roller Follower, Metric, Separable Type, Caged, High Carbon Chrome Steel, Open, Crowned
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAST30R
Shaft diameter
30
mm
Inside diameter
30
mm
Outer Diameter
62
mm
Width of innerring
20
mm
Width
19.8
mm
rs min.
0.0
mm
r1s min
0.6
mm
Inscribed circle diameter
38
mm
Basic dynamic load rating
30500
N
Basic static load rating
45400
N
Type of Inner Ring
LRT 303820S
Mass
320.0
g
